DHI-DB11

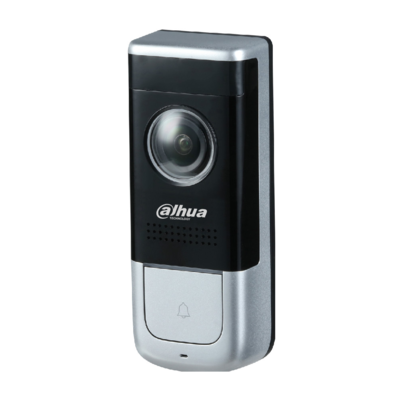

DB11 image WEB.png

float


float

Features

  • No WebUI
  • 1/2.7-in. 2 MP Progressive-scan CMOS Sensor
  • 2.4 GHz, IEEE802.11b/g/n, 100 m (328 ft) Open Field WiFi
  • H.264 Video Compression
  • 2 MP at 20 fps Maximum Resolution; 1.9 mm Fixed Lens
  • Built-in Microphone and Speaker for Real-time Communication
  • PIR Detection
  • Maximum IR LED Length 5 m (16.50 ft)
  • Five-year Warranty*

Applications

Android Software
gDMSS Plus gDMSSIcon.png Android Phone View Live Feed and Playback via Mobile Device
iDMSS Plus iDMSS Plus iOS Phone View Live Feed and Playback via iPhone

Images

Advanced Features & Functions List

Working

  • WORKING-Motion Recording Push Notifications to Mobile App
  • WORKING-Add DB11 to N42B2P
  • WORKING-Add DB11 to NVR4216-16P-I
  • WORKING-Substream and Mainstream
  • WORKING-rtsp://IP:554/cam/realmonitor?channel=1&subtype=1

Not Working

  • NOT-PIR Recording from Dahua Recorder-N42B2P, NVR4216-16P-I, N52B3P4
  • NOT-Calls to NVR on N42B2P, NVR4216-16P-I, N52B3P4
  • NOT-DB11 is not ONVIF Compliant
  • NOT-Calls to SmartPSS
  • NOT-Dahua Video Intercom Devices
  • NOT-3rd Party VMS, Recorders, or Video Intercom devices

Instructions

DB11 Specific Instructions

Firmware Update Instructions

Firmware Update Download

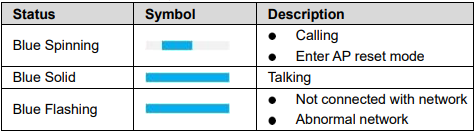

Indicator Lights

DB11 Indicator Lights Table.png

Front Panel

DB11 Front Panel.png

Rear Panel

DB11 Rear Panel.png

Specifications

Camera
Image Sensor 1/2.7-in. 2 MP CMOS
Effective Pixels 1920 x 1080, 2 MP
Scanning System Progressive
IR Distance 5.0 m (16.50 ft)
Lens
Lens Type Fixed
Focal Length 1.9 mm
Angle of View, Horizontal 140°
Video and Audio
Video Compression H.264
Resolution 2 MP at 30 fps
PIR Configurable area and distance:

Coverage: up to 120°

Distance: up to 5.0 m (16.50 ft)

Audio Input Built-in Microphone
Output Built-in Speaker
Audio Compression G.711
Network
WiFi 2.4 GHz WiFi (IEEE802.11b/g/n)
Antenna Internal Dual Antennae, 2 x 2 MIMO
Interoperability CGI
Mobile Operating System IOS, Android
Edge Storage Micro SD Card Slot, maximum 64 GB
Certifications
Safety EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011

+ A2:2013

IEC 60950-1:2005 (2nd Ed.); Am1:2009 + Am2:2013

Electromagnetic Compatibility

(EMC)

CFR 47 FCC Part 15 subpart B , 201 8

EN 55032:2015; EN 55024:2010;

EN 50130-4:2011/A1:2014; EN 61000-3-2:2014;

EN 61000-3-3:2013

Electrical
Power Supply 16 VAC to 24 VAC or

12 VDC/24 VDC

Power Consumption < 9 W
Environmental
Operating Temperature –20° C to +50° C (–4° F to 122° F),

Less than 95% RH

Ingress Protection IP55
Construction
Casing Plastic
Dimensions 118.94 mm x 47.0 mm x 29.30 mm

(4.68 in. x 1.85 in. x 1.15 in.)

Net Weight 0.20 kg (0.44 lb)
Installation Surface-mount
