New GUI - P2P Setup

Description

This article will go over initializing P2P on our New GUI devices

Prerequisites

  • Recorder with New GUI
  • Internet Access to the recorder

Step by Step Instructions

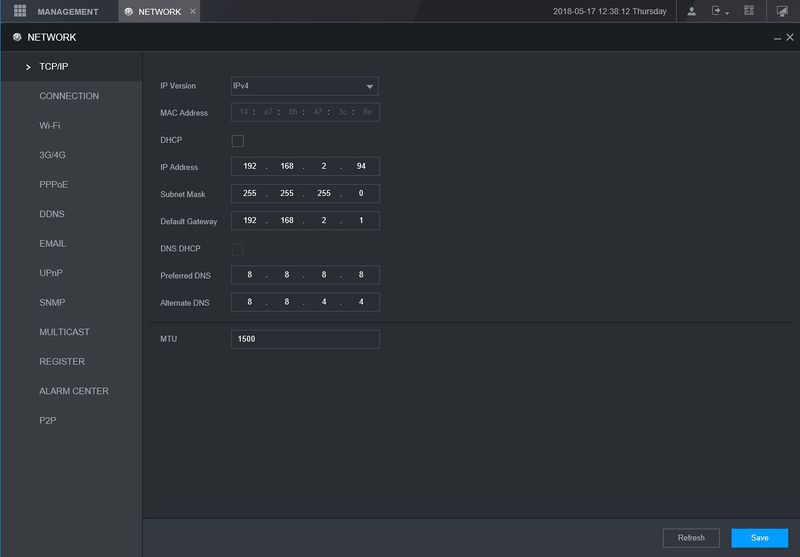

1. Under "Management" go to Network>TCP/IP

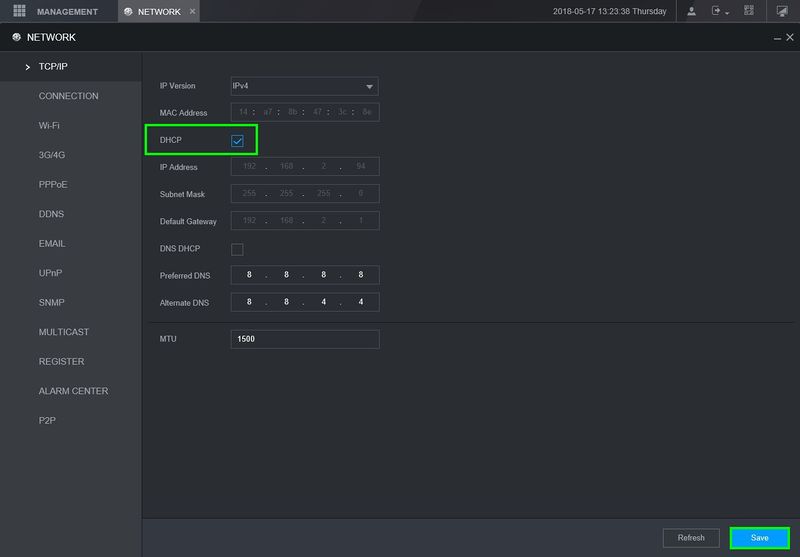

2. You can either set the device on a static ip or turn DHCP on to automatically grab an IP from the network. Save any changes

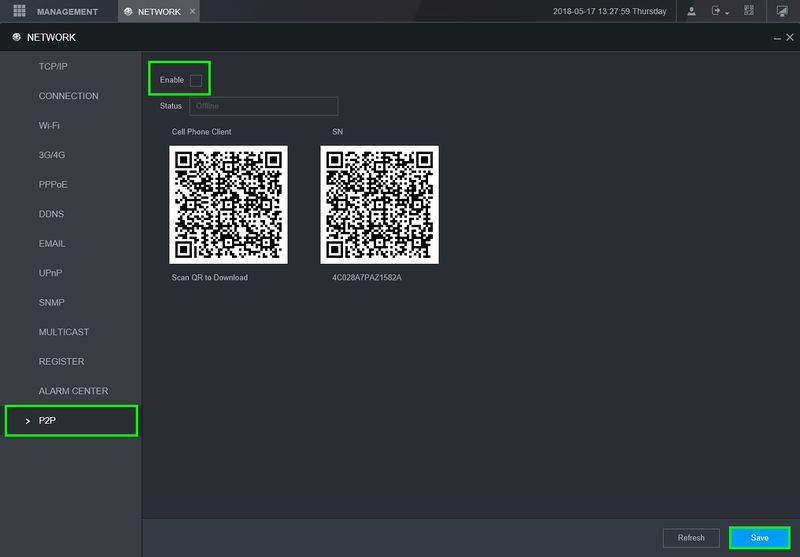

3. Locate P2P tab on the lower left and enable P2P

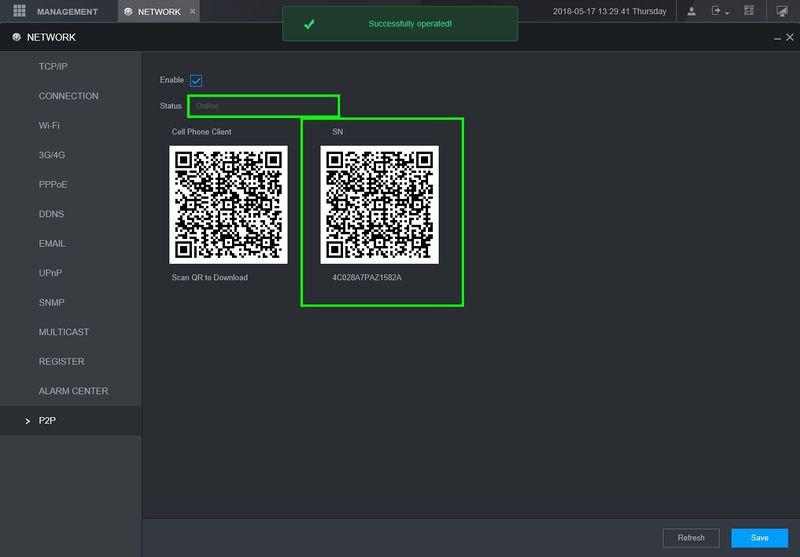

4. After saving it you should see the the status change to "Online", You can now use this device for remote viewing on our software


  • If you run into any issues getting the P2P to show online, reboot the device and try again. If that still doesn't work you may have a firewall on the network that is blocking the connection to the P2P servers

Software and Instructions

Check the links below to see how to add the device to our software

Apps SmartPSS 2.02
Instructions Mobile P2P Setup SmartPSS(BlackUI) P2P Setup
