PFM900 How To Test POE

How to Test POE with PFM900

PFM900 to IP Camera (PoE) Video Test Instructions

Prerequisites

  • PFM900
  • POE switch, Midspan POE Injector, or POE router
  • Ethernet cable

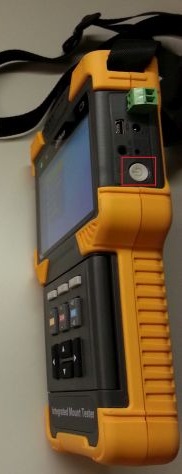

1. Power on your PFM900 Device, if it does not power on check How to Charge the PFM900


20160225 1042161234.jpg

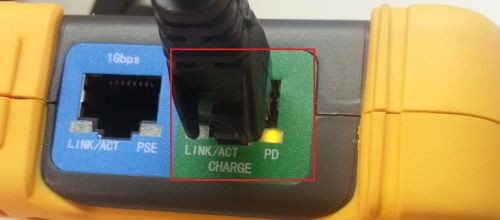

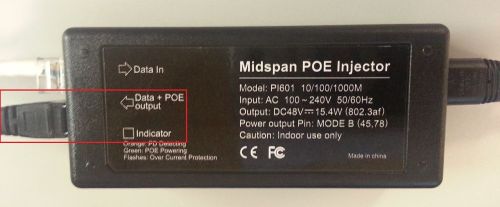

2. Connect the Ethernet cable from the POE network switch or Midspan POE Injector or POE router to the Green PD port

20160301 160823.jpg


20160301 160723.jpg

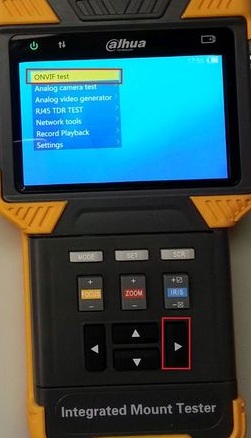

3. Now select "ONVIF Test" and press the right arrow button


304px-20160225 104234311.jpg

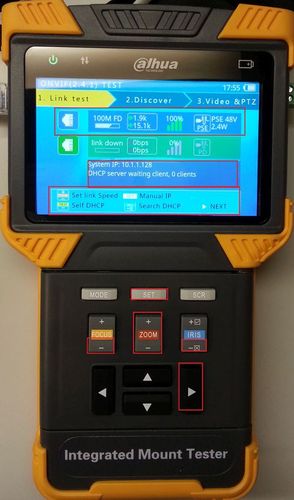

4. You will now see the Link test screen, the purpose of this screen is to show you the Link metrics that the PFM900 can read. This screen indicates (from right to left):

  • The speed you are connected at (10/100/1000 mbps)
  • The amount of data in and out of the IP Camera
  • The health of the connection (represents signal over distance of cable)
  • The (Blue) PSE which is the PoE output port or (below is Green) PD which is the PoE input (both are for data)
  • At the end is a Voltage and Wattage indicator.


20160225 104342.jpg
