Template:DB11 Add to Recorder SmartPSS

Description

These instructions will show you how to add a DB11 to a Dahua recorder in SmartPSS

Prerequisites

Video Instructions

Step By Step Instructions

1. From the Main Menu of SmartPSS

Click Device CFG

Add DB11 Dahua Recorder - SmartPSS - 1.jpg

2. Select the recorder from the device tree on the left

Add DB11 Dahua Recorder - SmartPSS - 2.jpg

3. Click to expand Camera

Add DB11 Dahua Recorder - SmartPSS - 3.jpg

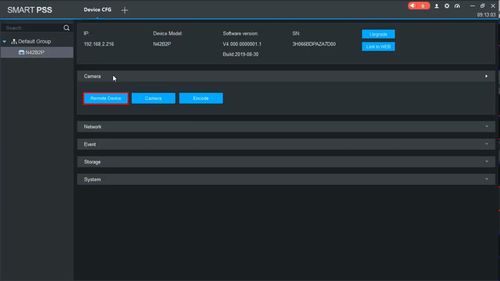

4. Click Remote Device

Add DB11 Dahua Recorder - SmartPSS - 4.jpg

5. A list of devices on the network local to the recorder will appear

Add DB11 Dahua Recorder - SmartPSS - 5.jpg

6. Find the DB11 in the list

Check the box next to the device in the list

Click Add Device

Add DB11 Dahua Recorder - SmartPSS - 6.jpg

7. The DB11 will move to Added Device

Add DB11 Dahua Recorder - SmartPSS - 7.jpg

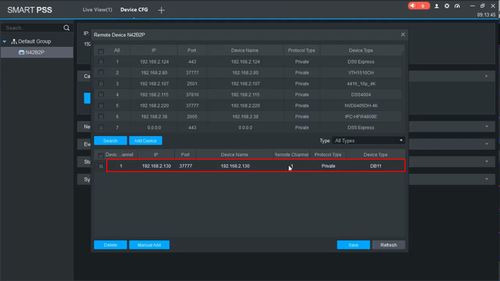

8. Double click the device in the list to modify any settings for the camera

Add DB11 Dahua Recorder - SmartPSS - 7-1.jpg

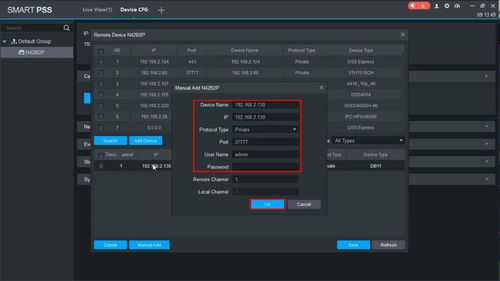

9. Confirm the correct information for the DB11

  • IP Address
  • TCP Port
  • Username
  • Password

Click OK

Add DB11 Dahua Recorder - SmartPSS - 7-2.jpg

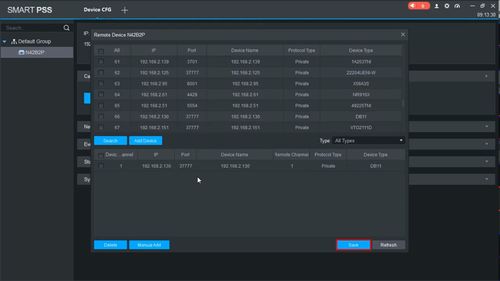

10. Click Save

Add DB11 Dahua Recorder - SmartPSS - 8.jpg

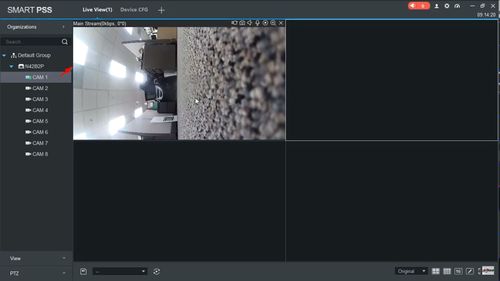

11. The DB11 will appear in the device list under the recorder and can be viewed in Live View

Add DB11 Dahua Recorder - SmartPSS - 9.jpg
