Thermal/DHI-ASI7213X-T1/Instructions/DSS Express/Use Body Temp Monitoring with DHI-ASI7213X-T1 and DSS-Express

Use Body Temp Monitoring with DHI-ASI7213X-T1 and DSS-Express

Description

This guide will show how to use the Body Temperature Monitoring feature of DSS Express S to view/review Temperature events from a DHI-ASI7213X-T1

Prerequisites

Video Instructions

Step by Step Instructions

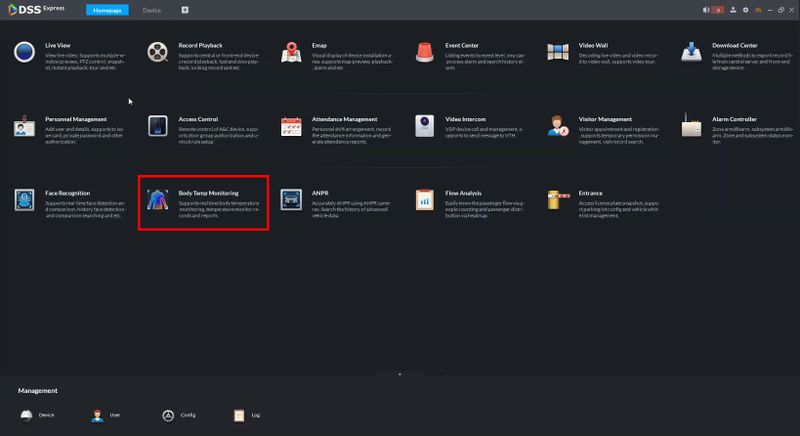

1. From the Homepage of DSS Express

Click Body Temp Monitoring

Use Body Temp Monitoring with DHI ASI7213X T1 and DSS Express -1.jpg

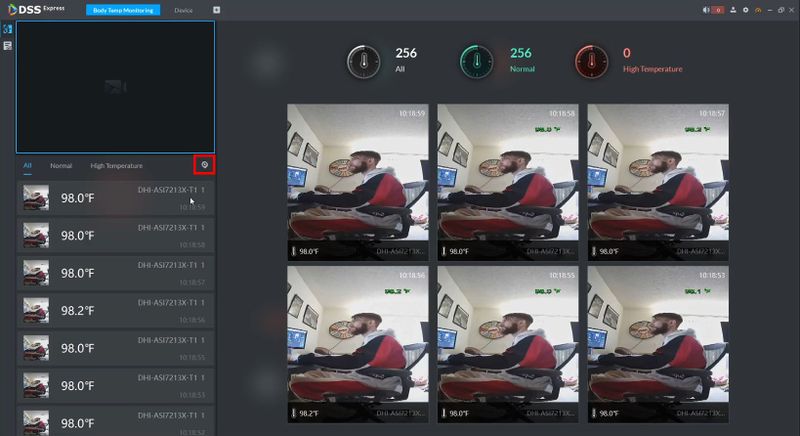

2. Click the device icon to select the device to sync events with

Use Body Temp Monitoring with DHI ASI7213X T1 and DSS Express -2.jpg

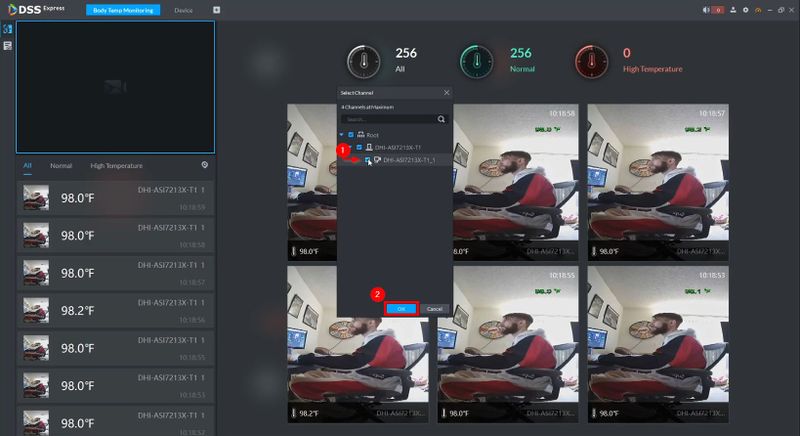

3. Expand the device tree and select the DHI-ASI7213X-T1 in the list

Click OK

Use Body Temp Monitoring with DHI ASI7213X T1 and DSS Express -3.jpg

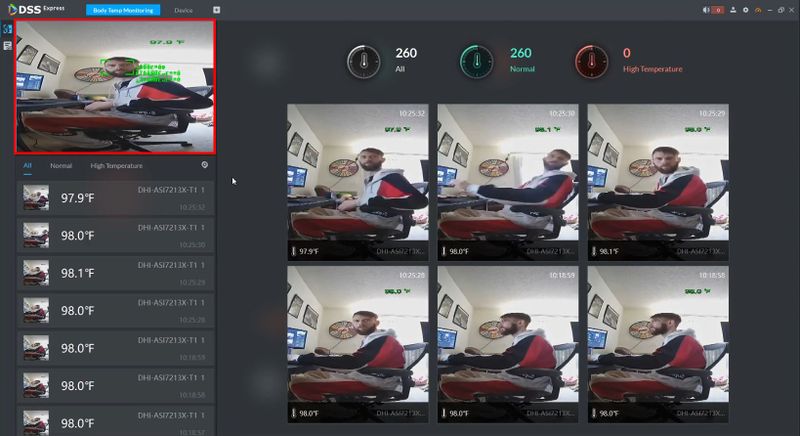

4. The live feed of the camera will load in the top left of the screen

Use Body Temp Monitoring with DHI ASI7213X T1 and DSS Express -4.jpg

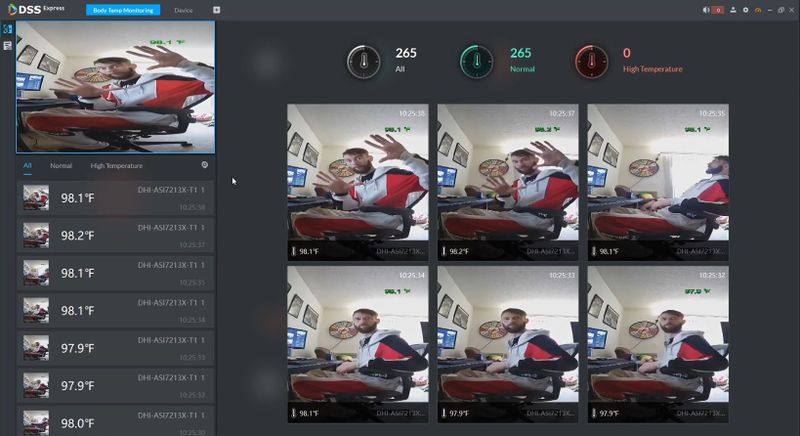

Temperature Events will appear in the list on the left side of the screen and can also be reviewed in the center of the screen

Use Body Temp Monitoring with DHI ASI7213X T1 and DSS Express -5.jpg
