C52A2N

C52A2N
Specifications Quick Start Guide Manual Firmware

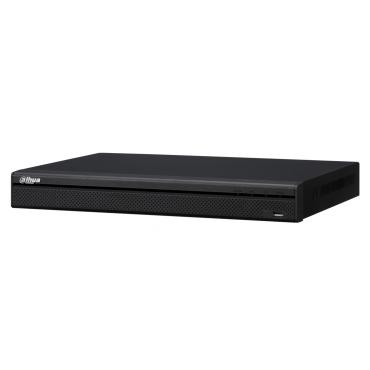

C52A2N HCVR52A16ANS3.jpg
Series: Pro
Compatible Video: HDCVI/CVBS (Auto-detect)
HD-CVI/Analog Channels: 8
IP Channels: 8 + 4
Video Compression: Smart H.264+/H.264
HD-CVI/Analog Recording
Recording Resolutions:
First Channel: 4K (8 MP) at 15 fps or 4 MP at 15 fps
Other Channels: 4 MP at 15 fps or
1080p, 720p, 960H, D1, HD1, BCIF, CIF, QCIF at 30 fps
IP Recording Resolutions: Up to 4K (8 MP) per channel
Input Bandwidth: 48Mbps
Video Output: One (1) HDMI (up to 3840 x 2160)
One (1) VGA
HDD: 2 SATA Ports, up to 8 TB capacity for each disk
eSATA: 0
Audio In: 1 RCA
Audio Out: 1 RCA
Alarm In: 0
Alarm Out: 0
Network: 1 Gigabit Port
USB: 1 USB 2.0 and One (1) USB 3.0
Power: 12 VDC, 4 A, 50/60 Hz
<15W (No HDD)
IVS: Yes (1 Channel)
POS: No
Spot Out/ Video Matrix: Yes, HDMI or VGA Interface, configurable

EOL: End of Life

EOL Date: 10/1/2019

Suggested Replacement

X72A2A

Features

  • Embedded Processor
  • Smart H.264+/H.264 dual-stream video compression
  • Supports HDCVI/CVBS Video Inputs
  • 8 HDCVI/CVBS Channels
  • 8 + 4 IP Channels, up to 4K (8 MP) per Channel
  • Maximum 48 Incoming Bandwidth
  • HDMI Output up to 4K Resolution
  • Built-in Smart Search
  • Intelligent Video System (one channel)
