USA/IPCamera/Lite/DH IPC HDBW11A0EN
Contents
DH-IPC-HDBW11A0EN-2.8MM, 3.6MM
EOL Date
- Upon stock liquidation
| Series: | Lite |
| Image Sensor: | 1/3” 1.3MP progressive scan CMOS |
| Resolution: | 1.3MP (1280X960) |
| H Field of View: | 89°/71° |
| Min. Illumination: | 0.1Lux/F2.0(Color), 0Lux/F2.0(IR on) |
| Day/Night: | ICR |
| Max. IR Range: | 105ft (32m) |
| WDR: | DWDR |
| Compression: | H.264H/MJPEG |
| FPS: | 30fps@1.3MP |
| Multi-Streaming: | 2 Streams |
| IVS: | - |
| ONVIF: | 2.4 |
| Audio In: | - |
| Audio Out: | - |
| Built In Microphone: | - |
| Memory Slot: | - |
| Alarm In: | - |
| Alarm Out: | - |
| IP Rating: | 67 |
| IK Rating: | 10 |
| Working Temp: | -30°C~+60°C, Less than 95%RH |
| Power: | DC12V, PoE (802.3af), Max 4W |
| Firmware: | URL |
Features
- 1/3” 1.3Megapixel progressive scan CMOS
- H.264&MJPEG dual-stream encoding
- Max 30fps@1.3MP(1280×960)
- DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
- Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
- 3.6mm fixed lens (2.8mm optional)
- Max. IR LEDs Length 30m
- IP67, IK10, PoE
CAD Images
Compression
FOV
Camera Height: 10m
Focal Length: 2.8mm
Target Horizontal Dist: 57.5m
Camera Height: 10m
Focal Length: 3.6mm
Target Horizontal Dist: 74.3m
Example Photos
2700k Full Brightness ~187lux
2700k Half Brightness ~97lux
5000k Full Brightness ~205lux
5000k Half Brightness ~76lux
2700k+5000k Full Brightness ~404lux
Lights Out ~1lux
Overhead+2700k+5000k ~632lux
Firmware Update Download
Compatible Accessories
| Accessories Combo 1 |  PFA136
| |
| Accessories Combo 2 |  PFB203W
| |
| Accessories Combo 3 | PFA136
|
 PFA150
|
| Accessories Combo 4 | PFB203W
|
 PFA152
|
| Accessories Combo 5 | PFA136
|
 PFA151
|

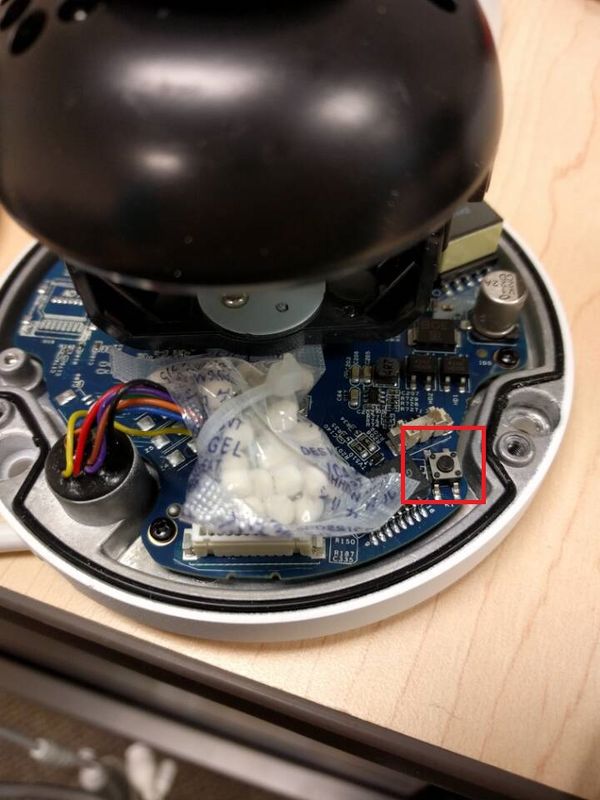

Reset Button
Specifications
| Model | DH-IPC-HDBW11A0EN | |
| Camera | ||
| Image Sensor | 1/3” 1.3Megapixel progressive scan CMOS | |
| Effective Pixels | 1280(H) x960(V) | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | Auto/Manual, 1s~1/100000s | |
| Min. Illumination | 0. 1Lux/F2.0(Color), 0Lux/F2.0(IR on) | |
| S/N Ratio | More than 50dB | |
| Video Output | N/A | |
| Camera Features | ||
| Max. IR LEDs Length | 30m | |
| Day/Night | Auto(ICR)/Color/B/W | |
| Backlight Compensation | BLC / HLC / DWDR | |
| White Balance | Auto/Manual | |
| Gain Control | Auto/Manual | |
| Noise Reduction | 3D | |
| Privacy Masking | Up to 4 areas | |
| Lens | ||
| Focal Length | 3.6mm(2.8mm optional) | |
| Max Aperture | F2.0(F2.0) | |
| Focus Control | Manual | |
| Angle of View | H: 71°(89°) | |
| Lens Type | Fixed lens | |
| Mount Type | Board-in Type | |
| Video | ||
| Compression | H.264/ H.264H/ H.264B/ MJPEG | |
| Resolution | 1.3M(1280×960)/720P(1280×720)/D1(704×576/704×480) /CIF(352×288/352×240) | |
| Frame Rate | Main Stream | 1.3M(1 ~ 30fps) |
| Sub Stream | D1(1 ~ 30fps) | |
| Bit Rate | H.264: 4kbps～8192kbps | |
| Corridor Mode | Support | |
| Audio | ||
| Compression | N/A | |
| Interface | N/A | |
| Network | ||
| Ethernet | RJ-45 (10/100Base-T) | |
| Wi-Fi | N/A | |
| Protocol | IPv4/IPv6, HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, IGMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS | |
| Compatibility | ONVIF, CGI | |
| Max. User Access | 20 users | |
| Smart Phone | iPhone, iPad, Android, Windows Phone | |
| Auxiliary Interface | ||
| Memory Slot | N/A | |
| RS485 | N/A | |
| Alarm | N/A | |
| PIR Sensor Range | N/A | |
| General | ||
| Power Supply | DC12V, PoE (802.3af) | |
| Power Consumption | <4W(IR on) | |
| Working Environment | -30°C~+60°C, Less than 95% RH | |
| Ingress Protection | IP67 | |
| Vandal Resistance | IK10 | |
| Dimensions | Φ110mm×81mm | |
| Weight | 0.47kg | |
