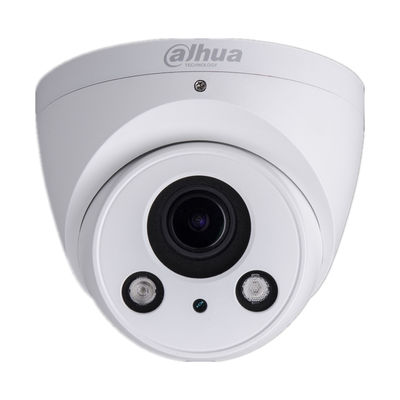

N42AH3Z
Features
- 1/3-in. 4 MP Progressive CMOS
- Smart H.264+ and H.264 Dual-stream Encoding
- 4 MP at 20 fps and 3 MP at 30 fps
- WDR (120 dB), Day/Night (ICR), 3DNR, AWB, AGC, BLC
- Multiple Network Monitoring: Web Viewer, CMS (DSS/PSS) and DMSS
- Micro SD Card Support, up to 128 GB
- 2.7 mm to 12 mm Varifocal Lens
- Max. IR LED Length 60 m (197 ft)
- IP67, PoE
Compression
FOV
Camera Height: 10m
Focal Length: 2.7mm
Target Horizontal Dist: 49.2m
Camera Height: 10m
Focal Length: 12mm
Target Horizontal Dist: 223m
Firmware Update Instructions
- Instructions for Firmware Update via USB
- Instructions for Firmware Update via ConfigTool
- Instructions for Firmware Update via Internet Explorer
Firmware Update Download
Body Style with Compatible Accessories
Specifications
| Camera | |
| Image Sensor | 1/3-in. 4 MP Progressive CMOS |
| Effective Pixels | 2688(H) x 1520(V) |
| RAM/ROM | 256 MB / 16 MB |
| Scanning System | Progressive |
| Minimum Illumination | Color: 0.1 Lux at F1.4 |
| 0 Lux at F1.4 (IR on) | |
| S/N Ratio | More than 50 dB |
| IR Distance | Distance up to 60 m (197 ft) |
| IR On/Off Control | Auto, Manual |
| IR LEDs | Two (2) |
| Lens | |
| Lens Type | Motorized |
| Mount Type | Board-in |
| Focal Length | 2.7 mm to 12 mm |
| Max. Aperture | F1.4 |
| Angle of View | Horizontal: 35° to 100° |
| Vertical: 20° to 54° | |
| Focus Control | Auto |
| Close Focus Distance | 0.3 m |
| Range | |
| Pan/Tilt | Pan: 0° to 360° |
| Tilt: 0° to 78° | |
| Rotation: 0° to 360° | |
| Video | |
| Compression | Smart H.264+¹, H.264 |
| Streaming Capability | Two (2) Streams |
| Resolution | 4 MP (2688 x 1520), 3 MP (2304 x 1296), |
| 1080p (1920 x 1080), 1.3 MP (1280 x 960), | |
| 720p (1280 x 720), D1 (704 x 480), CIF (352 x 240) | |
| Frame Rate | |
| Main Stream | 4 MP at 20 fps or 3 MP at 30 fps |
| Sub Stream | D1, CIF at 30 fps |
| Bit Rate Control | CBR, VBR |
| Bit Rate | H264: 24 K to 8 Mbps |
| Day/Night | Auto (ICR), Color, B/W |
| BLC Mode | BLC, HLC, WDR (120 dB) |
| White Balance | Auto, Natural, Street Lamp, Outdoor, Manual |
| Gain Control | Auto, Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | Off, On (4 Zone, Rectangle) |
| Region of Interest | Off, On (4 Zone) |
| Smart IR | Support |
| Digital Zoom | 16x |
| Flip | 0°/90°/180°/270° |
| Mirror | Off, On |
| Privacy Masking | Off, On (4 Area, Rectangle) |
| Network | |
| Ethernet | RJ-45 (10/100 Base-T) |
| Protocol | HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP,FTP, |
| DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, | |
| Bonjour, 802.1x, Multicast, ICMP, IGMP | |
| Interoperability | ONVIF, PSIA, CGI |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 10 Users / 20 Users |
| Edge Storage | NAS (Network Attached Storage) |
| Local PC for instant recording | |
| Micro SD Card, max. 128 GB | |
| Web Viewer | IE, Firefox, Safari |
| Management Software | Smart PSS, DSS |
| Mobile Operating System | IOS, Android |
| Certifications | |
| Safety | UL 60950-1 |
| Electromagnetic Compatibility (EMC) | FCC Part 15 Subpart B |
| Electrical | |
| Power Supply | DC12V, PoE (802.3af, Class 0) |
| Power Consumption | < 9.75 W |
