N53AJ52

N53AJ52
Specifications Quick Start Guide Manual Firmware

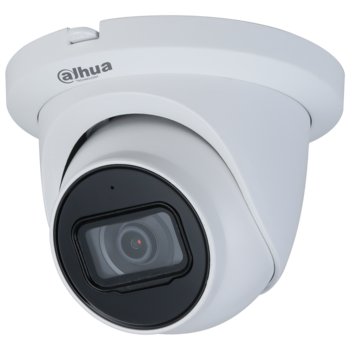

N53AJ52 N53AJ52 web.png
Series: Lite
Body: Eyeball
Image Sensor: 1/2.7-in. 5 MP CMOS
Resolution: 5 MP, 2592(H) x 1944(V)
Angle of View: Horizontal: 98°
Vertical: 72°
Diagonal: 130°
Lens Type: Fixed
Focal Length: 2.8 mm
Min. Illumination: Color: 0.005 lux at F1.6
0 lux at F1.6 (IR on)
Day/Night: Auto (ICR), Color, B/W
Max. IR Range: Up to 30.0 m (98.43 ft)
WDR: 120dB
Video Compression: Smart H.265+, H.265, Smart H.264+, H.264,
H.264B, H.264H, MJPEG (Sub Stream only)
Audio Compression: G.711a, G.711Mu, AAC, G.726
Frame Rate: 5 MP (2592 x 1944) at 20 fps or
4 MP (2688 x 1520) at 30 fps
Multi-Streaming: 3 Streams
IVS: Motion, Scene Change
Analytics+: Perimeter Protection,
Smart Motion Detection
ONVIF: Yes
Audio In: 1 (Built-in Microphone)
Audio Out: 0
Memory Slot: Micro SD Slot, maximum 256 GB
Alarm In: 0
Alarm Out: 0
IP Rating: 67
IK Rating: -
Operating Temp: –40° C to +60° C (–40° F to +140° F)
Less than 95% RH
Power: 12 VDC or PoE (IEEE 802.3af, Class 0)
< 8.1 W
ePoE: No

Features

  • 1/2.7 in. 5 MP Progressive-scan CMOS Sensor
  • Triple-stream Encoding
  • Smart H.265+ and Smart H.264+ Dual Codec
  • 5 MP (2592 x 1944) at 20 fps, 2.8 mm Fixed Lens
  • Starlight Technology for Low-light Applications
  • Analytics+ Function – Perimeter Protection
  • Smart Motion Detection for Improved Alarm Accuracy
  • True Wide Dynamic Range (120 dB) and Day/Night IR Cut Filter
  • Maximum IR LED Distance 30 m (98.43 ft)
  • Built-in Microphone
  • ArcticPro Series Camera – Operational down to –40° C (–40° F)
  • IP67 Ingress Protection
  • Five-year Warranty (for products sold through an authorized Dahua Dealer)

Compression

Intelligent Features

Interfaces

WebUI Old SmartPSS DSS Express S
WebUI Old SmartPSS DSS Express S

Product Images

Product Box Box Contents Wire Harness Reset Button SD-Card Slot
Product Box Box Contents Wire Harness Reset Button SD-Card Slot
