USA/IPCamera/PTZ/Pro/DH SD32A203SN HN

DH-SD32A203SN-HN

float

float

DH-SD32A203SN-HN SD32203SN.jpg
Series: Pro
Image Sensor: 1/2.8” 2MP Exmor CMOS
Lens: 3.0 ~ 9.0mm (3x Optical zoom)
Resolution: 1080P (1920 x 1080)
H Field of View: 98.4° ~ 29.7°
Min. Illumination: 0.05Lux/F1.6(Color), 0.005Lux/F1.6(B/W)
Max. IR Range: -
WDR: DWDR
Compression: H.264 / MJPEG
FPS: 30fps@1080P, 60fps@720P
Multi-Streaming: 2 Streams
Pan/Tilt/Zoom: 300 preset, Pan: 0° ~ 360°; Tilt: 0° ~ 90°
Preset Speed: Pan: 240°/s; Tilt: 160°/s
IVS: -
ONVIF: 2.4
Audio In: 1
Audio Out: 1
Built In Microphone: -
Memory Slot: Micro SD, Max 128GB
Alarm In: 2
Alarm Out: 1
IP Rating: 66
IK Rating: 10
Working Temp: -30°C~+60°C
Power: DC12V, PoE (802.3af)
Firmware: URL

Features

  • 3.0mm ~ 9.0mm(3x)optical zoom
  • H.264 & MJPEG dual-stream encoding
  • Max 25/30fps@1080p resolution
  • DWDR, Day/Night(ICR), DNR (2D&3D),Auto iris, Auto focus, AWB, AGC,BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • Max 240 °/s pan speed, 0° ~360° endless pan rotation
  • Up to 255 presets, 5 auto scan, 8 tour, 5 pattern
  • Built-in 2/1 alarm in/out
  • Support intelligent 3D positioning with DH-SD protocol
  • Micro SD memory, IP66, IK10, PoE

EOL: End of Life

EOL Date: 4/30/2017

Suggested Replacement

CAD Images

Compression

FOV

Firmware

You can update your device with the IP Firmware Toolkit.

Firmware Update Instructions

Firmware Update Download

Firmware Changelog

  • Build Date: 10/23/2015
  • 1.Remove IVS; 2.English, French, Spanish optional,English default,NTSC

Compatible Accessories

Accessories Combo 1

Accessories Combo 2

Accessories Combo 3

Accessories Combo 4

Accessories Combo 5

Accessories Combo 6

Accessories Combo 7

Accessories Combo 8

Optional Accessories

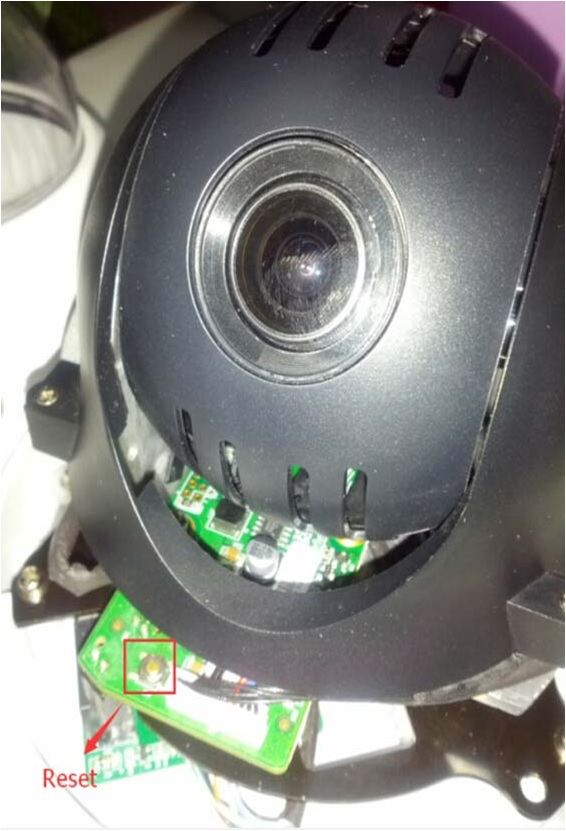

Reset Button

SD32 reset button.jpg

Specifications

Model DH-SD32A203SN-HN
Camera
Image Sensor 1/2.8” Exmor CMOS
Effective Pixels 1944(H) x 1092(V), 2 Megapixels
Scanning System Progressive
Electronic Shutter Speed 1/1 - 1/30,000s
Min. Illumination

Color: 0.05 lux@F1.6, B/W: 0.005 lux@F1.6

S/N Ratio

More than 50dB

Camera Features
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / DWDR
White Balance Auto, ATW, Indoor, Outdoor, Manual
Gain Control Auto / Manual
Noise Reduction 2D / 3D
Privacy Masking Up to 24 areas
Digital Zoom 16x
Lens
Focal Length 3.0mm ~ 9.0mm(3x Optical zoom)
Max Aperture F1.6 ~ F2.7
Focus Control Auto / Manual
Angle of View H: 116.5° ~ 34.5°
Close Focus Distance 1000mm~1500mm
PTZ
Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: 0° ~ 90°, auto flip 180°
Manual Control Speed Pan: 0.1° ~ 240°/s; Tilt: 0.1° ~160°/s
Preset Speed Pan: 240°/s; Tilt: 160°/s
Preset 80(DH-SD), 255(Pelco-P/D)
PTZ Mode 5 Pattern, 8 Tour, 5 Auto Scan, Auto Pan
Speed Setup Human-oriented focal length/ speed adaptation
Power up Action Auto restore to previous PTZ and lens status after power failure
Idle Motion Activate Preset/Pan/Scan/Tour/Pattern if there is no command in the specified period
Video
Compression H.264 / MJPEG
Resolution 1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)
Frame Rate Main Stream 1080P/D1(1 ~ 25/30fps), 720P(1~50/60fps)
Sub Stream D1/CIF(1 ~ 25/30fps)
Bit Rate H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps
Audio
Compression G.711a / G.711u (32kbps) / PCM (128kbps)
Interface 1/1 channel In/Out
Network
Ethernet RJ-45 (10/100Base-T)
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
ONVIF ONVIF Profile S
Max. User Access 20 users

Smart Phone

iPhone, iPad, Android, Windows Phone

Auxiliary Interface
Memory Slot Micro SD, Max 64GB
General
Power Supply DC12V, PoE(802.3af)
Power Consumption 10W
Working Environment -20ºC ~ 60ºC / Less than 90% RH
Ingress Protection IP66
Vandal Resistance IK10
Dimensions Φ160(mm) x 132(mm)
Weight 1.33kg
