DH-SD6AEA230FN-HNI

DH-SD6AEA230FN-HNI
Specifications Quick Start Guide Manual Firmware PTZ Firmware

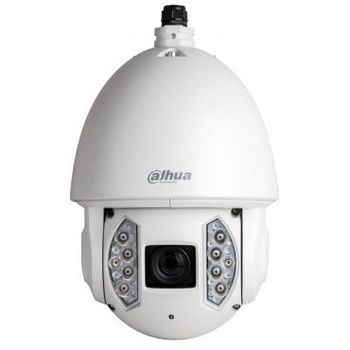

DH-SD6AEA230FN-HNI SD6AEA230FN.jpg
Series: Ultra
Body: PTZ
Image Sensor: 1/1.9-in. CMOS
Resolution: 2 MP, 1920(H) x 1080(V)
Angle of View: Horizontal: 61.2° to 2.1°
Lens Type: Varifocal
Focal Length: 6 mm to 180 mm
Optical Zoom: 30x
Min. Illumination: Color: 0.002 lux at F1.5
0 lux at F1.5 (IR on)
Day/Night: Auto (ICR), Color, B/W
Max. IR Range: Up to 200 m (656.17 ft)
WDR: 120dB
Video Compression: H.264, MJPEG
Audio Compression: G.711a, G.711Mu, AAC, G.726
Frame Rate: 1080p at 30 fps or 720p at 60 fps
Multi-Streaming: 3 Streams
Pan/Tilt Range: Pan: 0° to 360° endless
Tilt: -20° to 90°, Auto Flip 180°
Preset Speed: 300 Presets
Pan: 240° /s
Tilt: 200° /s
IVS: Motion, Tripwire, Intrusion,
Scene Change, Abandoned/Missing Object,
Facial Detection, Auto-tracking
ONVIF: Yes
Audio In: One (1) Channel
Audio Out: One (1) Channel
Memory Slot: Micro SD Slot, maximum 128 GB
Alarm In: Seven (7) Channels
Alarm Out: Two (2) Channels
IP Rating: 67
IK Rating: 10
Operating Temp: –40° C to +70° C (–40° F to +158° F),
with built-in heater
Less than 90% RH
Power: 24 VAC, 3 A (± 25%), Hi-PoE
< 38 W
ePoE: No

Features

  • Powerful 30x optical zoom
  • Ultra-low light star-light camera
  • H.264 & MJPEG Three-stream encoding
  • Max 60fps@720P and 30fps@1080P resolution
  • Defog, WDR, EIS, ROI, Day/Night(ICR), DNR (2D&3D), Auto iris, Auto focus, AWB, AGC,BLC
  • Auto-tracking and IVS
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • Max 240°/s pan speed, 360° endless pan rotation
  • Up to 255 presets, 5 auto scan, 8 tour, 5 pattern
  • Built-in 7/2 alarm in/out
  • Support intelligent 3D positioning with DH-SD protocol
  • Micro SD memory, IP67, IK10, Hi-POE
  • IR Distance up to 200m
  • Tripwire, Intrusion, Cross Warning Zone, Perimeter Protection, Loitering Detection, Abandoned Object Detection, Missing Object Detection, Illegal Parking, Fast Moving and etc.

CAD Images

Compression

Intelligent Features

Interfaces

WebUI Old SmartPSS DSS Express S
WebUI Old SmartPSS DSS Express S

FOV

Compatible Accessories

Accessories Combo 1

Accessories Combo 2

Accessories Combo 3

Accessories Combo 4

Accessories Combo 5

Accessories Combo 6

Accessories Combo 7

Accessories Combo 8

Accessories Combo 9

Accessories Combo 10

Accessories Combo 11

Accessories Combo 12

Accessories Combo 13

Optional Accessories

Location of SD card and Reset keys


Specifications
