USA/IPCamera/PTZ/Ultra/DH SD6ALA230FN HN

DH-SD6ALA230FN-HN

float

float


DH-SD6ALA230FN-HN SD6ALA230FN.jpg
Series: Ultra
Image Sensor: 1/1.9" 2MP Exmor CMOS
Lens: 6~180mm (30x Optical zoom)
Resolution: 1080P (1920 x 1080)
H Field of View: 61.2° ~ 2.3°
Min. Illumination: 0.005 Lux/F1.6 (Color),0 Lux/1.6 (IR on)
Max. IR Range: 550yd
WDR: 120dB
Compression: H.264 / MJPEG
FPS: 30fps@1080P, 60fps@720P
Multi-Streaming: 3 Streams
Pan/Tilt/Zoom: 300 Presets, Pan: 0° ~ 360° endless;
Tilt: -10°~ 90°, auto flip 180°
Preset Speed: Pan: 240° /s; Tilt: 200° /s
IVS: -
ONVIF: 2.4
Audio In: 1
Audio Out: 1
Built In Microphone: -
Memory Slot: Micro SD, Max 128GB
Alarm In: 7
Alarm Out: 2
IP Rating: 67
IK Rating: 10
Working Temp: -40ºC ~ +70ºC
Power: AC24V, Hi-PoE
Firmware: URL

Features

  • Powerful 30x optical zoom
  • Ultra-low light star light camera
  • H.264 & MJPEG Three-stream encoding
  • Max 60fps@720P and 30fps@1080P resolution
  • Defog, 120dB WDR, EIS, ROI, Day/Night(ICR), DNR (2D&3D), Auto iris, Auto focus, AWB, AGC,BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • Max 240°/s pan speed, 360° endless pan rotation
  • Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
  • Built-in 7/2 alarm in/out
  • Micro SD memory, IP67, Hi-POE
  • Laser beam distance up to 500m

EOL: End of Life

EOL Date: 4/30/2017

Suggested Replacement


CAD Images

  • 6AL copy.jpg

Compression

FOV

  • Camera Height: 10m
    Focal Length: 6mm
    Target Horizontal Dist: 82.7m

  • Camera Height: 10m
    Focal Length: 180mm
    Target Horizontal Dist: 2500m

Firmware

You can update your device with the IP Firmware Toolkit.

Firmware Update Instructions

Firmware Update Download

Firmware Changelog

  • Build Date: 01/22/16
  • 1.Remove IVS; 2.English, French, Spanish optional,English default, NTSC

Compatible Accessories

Accessories Combo 1

  • PFB303W

  • PFA111

Accessories Combo 2

  • PFB300C

  • PFA111

Accessories Combo 3

  • PFA120

  • PFB303W

  • PFA111

Accessories Combo 4

  • PFA140

  • PFB303W

  • PFA111

Accessories Combo 5

  • PFA150

  • PFB303W

  • PFA111

Accessories Combo 6

  • PFA150

  • PFB300C

  • PFA111

Accessories Combo 7

  • PFA150

  • PFA120

  • PFB303W

  • PFA111

Accessories Combo 8

  • PFA150

  • PFA140

  • PFB303W

  • PFA111

Accessories Combo 9

  • PFA151

  • PFB303W

  • PFA111

Accessories Combo 10

  • PFA151

  • PFB300C

  • PFA111

Accessories Combo 11

  • PFA151

  • PFA120

  • PFB303W

  • PFA111

Accessories Combo 12

  • PFA151

  • PFA140

  • PFB303W

  • PFA111

Accessories Combo 13

  • PFA111

  • PFB303S

Optional Accessories

  • PFA112

  • PFA113

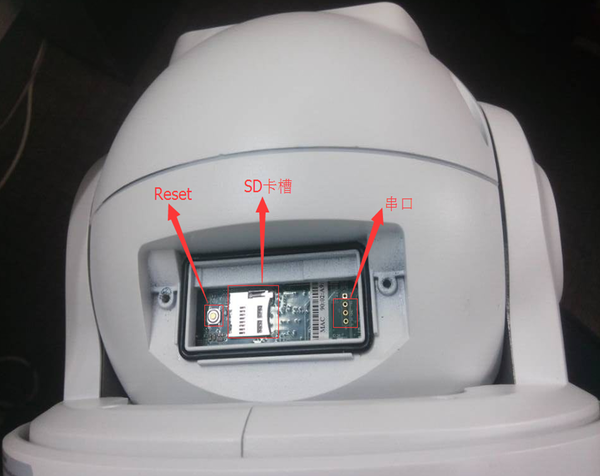

Reset Button

DH SD6ALA230FN HN Reset Button.png

Specifications

Model DH-SD6ALA230FN-HN
Camera
Image Sensor 1/1.9" Exmor CMOS
Effective Pixels 1944(H) x 1092(V), 2 Megapixels
Scanning System Progressive
Electronic Shutter Speed 1/1 ~ 1/30,000s
Min. Illumination Color: 0.002Lux@F1.6; B/W: 0.0002Lux@F1.6; 0Lux (IR on)
S/N Ratio More than 56dB
Video Output BNC(1.0Vp-p/75Ω), PAL / NTSC
Camera Features
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / WDR(120dB)
White Balance Auto, ATW, Indoor, Outdoor, Manual
Gain Control Auto / Manual
Noise Reduction Ultra DNR (2D/3D)
Privacy Masking Up to 24 areas
Digital Zoom 16x
EIS Support
Defog Support
Lens
Focal Length 6mm~180mm(30x Optical zoom)
Max Aperture F1.6 ~ F4.8
Focus Control Auto / Manual
Angle of View H: 61.2° ~ 2.32°
Close Focus Distance 100mm~ 1000mm
Laser Module
Laser Control Auto / Manual
Laser Beam Distance Up to 500m
Angle of Laser Beam 2° ~ 60°
PTZ
Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -10° ~ 90°, auto flip 180°
Manual Control Speed Pan: 0.1° ~240° /s; Tilt: 0.1° ~120° /s
Preset Speed Pan: 240° /s; Tilt: 200° /s
Preset 300
PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Speed Setup Human-oriented focal length/ speed adaptation
Power up Action Auto restore to previous PTZ and lens status after power failure
Idle Motion Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
Time Task Auto activation of Preset/ Pan/ Scan/ Tour/ Pattern by preset-time
Protocol DH-SD, Pelco-P/D (Auto recognition)
Video
Compression H.264 / MJPEG
Resolution 1080P(1920×1080) / 720P(1280×720) /D1(704×576/704×480) /CIF(352×288/352×240)
Frame Rate Main Stream 1080P/ D1 (1 ~ 25/30fps), 720P(1~50/60fps)
Sub Stream 1 D1/CIF(1 ~ 25/30fps)
Sub Stream 2 720P/D1/ CIF (1 ~ 25/30fps)
Bit Rate H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps
Audio
Compression G.711a / G.711u(32kbps)/ PCM(128kbps)
Interface 1/1 channel In/Out
Intelligent Function
Auto Tracking Single-scene, multiple-scene, panorama-scene
IVS (optional) Tripwire, Intrusion, Cross Warning Zone, Perimeter Protection, Loitering Detection, Abandoned Object Detection, Missing Object Detection, Illegal Parking, Fast Moving and etc.
Tracking Trigger Mode Manual / Auto (alarm triggered)
Tracking Trigger Event Targeting, Zoom, Tracking, Recording, Snapshot, Alarm and etc.
Network
Ethernet RJ-45 (10/100Base-T)
Protocol IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
Compatibility ONVIF PSIA CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot Micro SD, Max 64GB
Alarm 7/2 channel In/Out
General
Power Supply AC24V/3A(±25%), Hi-POE
Power Consumption 20W, 43W (IR on)
Working Environment -40ºC ~ 70ºC / Less than 90% RH
Ingress Protection IP67
Wiper Yes
Dimensions Φ240(mm) x 357(mm)
Weight 6.75kg

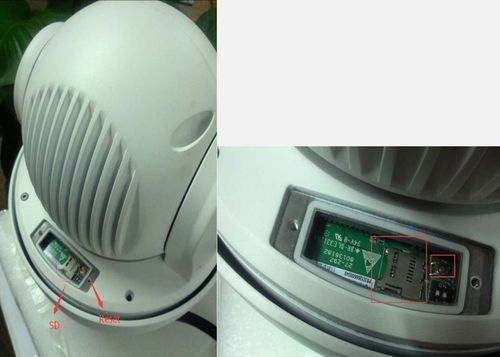

Location of SD card and Reset keys
