USA/IPCamera/Pro/DH IPC HFW52A1EN ZI
Contents
[hide | ◄ ► ]DH-IPC-HFW52A1EN-ZI
| Series: | Pro |
| Image Sensor: | 1/2.7” 2MP progressive scan CMOS |
| Resolution: | 2MP (1920x1080) |
| H Field of View: | 99°-34° |
| Min. Illumination: | 0.01Lux/F1.4(Color), 0Lux/F1.4(IR on) |
| Day/Night: | ICR |
| Max. IR Range: | 165ft (50m) |
| WDR: | 120dB |
| Compression: | H.264H/MJPEG/JPEG |
| FPS: | 30fps@1080p |
| Multi-Streaming: | 3 Streams |
| IVS: | Tripwire Intrusion Scene change Missing/Abandoned Audio detect Face detect |
| ONVIF: | 2.4 |
| Audio In: | 1 |
| Audio Out: | 1 |
| Built In Microphone: | 1 |
| Memory Slot: | Micro SD-Max 128GB |
| Alarm In: | 1 |
| Alarm Out: | 2 |
| IP Rating: | 67 |
| IK Rating: | - |
| Working Temp: | -30°C~+60°C, Less than 95%RH |
| Power: | DC12V, PoE (802.3af) |
| Firmware: | URL |
CAD Images
Compression
FOV
Camera Height: 10m
Focal Length: 2.7mm
Target Horizontal Dist: 45.8m
Camera Height: 10m
Focal Length: 12mm
Target Horizontal Dist: 208.1m
Firmware
You can update your device with the IP Firmware Toolkit.
Firmware Update Instructions
- Instructions for Firmware Update via USB
- Instructions for Firmware Update via ConfigTool
- Instructions for Firmware Update via Internet Explorer
Firmware Update Download
Firmware Changelog
- Build Date: 07/08/16
- 1.Support H.264+; 2.English, French, Spanish optional,English default,NTSC
Compatible Accessories
| Accessories Combo 1 |  PFA121
| |
| Accessories Combo 2 | PFA121
|
 PFA150
|
| Accessories Combo 3 | PFA121
|
 PFA152
|
| Accessories Combo 4 | PFA121
|
 PFA151
|
Product Diagram
.jpg)

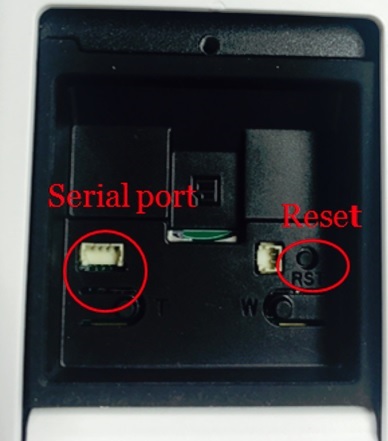

Reset Button
