USA/IPCamera/Pro/N25BB5ZI
Contents
N25BB5ZI
.png)
Features
- 1/2.8-in. 2 MP Progressive Scan Exmor CMOS
- Smart H.265+ and H.264 Triple-stream Encoding
- 60 fps @ 1080p (1920 x 1080)
- Smart Detection Supported
- True Wide Dynamic Range (120 dB) and Day/Night IR Cut Filter
- 2.7 mm to 12 mm Motorized Lens
- Alarm and Audio Inputs/Outputs
- Max. IR LED Length 50 m (164 ft)
- Micro SD Memory, IP67, PoE
Compression
FOV
Camera Height: 10m
Focal Length: 2.7mm
Target Horizontal Dist: 47.4m
Camera Height: 10m
Focal Length: 12mm
Target Horizontal Dist: 215.3m
Example Photos
2700k Full Brightness ~195lux
2700k Half Brightness ~93lux
5000k Full Brightness ~181lux
5000k Half Brightness ~77lux
2700k+5000k Full Brightness ~360lux
Lights Out ~1lux
Overhead+2700k+5000k ~658lux
Firmware
You can update your device with the IP Firmware Toolkit.
Firmware Update Download

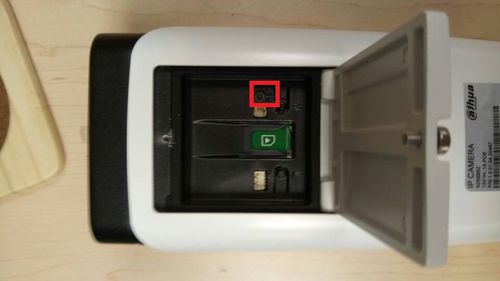

Reset Button
Intelligent Features
Tripwire
Intrusion
Abandoned/Missing
Specifications
| Camera | |
| Image Sensor | 1/2.8-in. 2 MP Progressive Scan CMOS |
| Effective Pixels | 1920(H) x 1080(V) |
| RAM/ROM | 256 MB / 32 MB |
| Scanning System | Progressive |
| Minimum Illumination | Color: 0.006 lux at F1.4 |
| B/W: 0 lux at F1.4 (IR on) | |
| S/N Ratio | More than 50 dB |
| IR Distance | Distance up to 50 m (164.04 ft) |
| IR On/Off Control | Auto/ Manual |
| IR LEDs | Four (4) |
| Lens | |
| Lens Type | Motorized / Auto Iris (DC) |
| Mount Type | Board-in |
| Focal Length | 2.7 mm to 12 mm |
| Max. Aperture | F1.4 |
| Angle of View | Horizontal: 97° to 34° |
| Vertical: 52° to 20° | |
| Optical Zoom | 4x |
| Focus Control | Motorized |
| Close Focus Distance | 0.30 m (0.98 ft) |
| Pan/Tilt/Rotation | |
| Range | Pan: 0˚ to 360˚ |
| Tilt: 0˚ to 65˚ | |
| Rotation: 0˚ to 360˚ | |
| Intelligence | |
| IVS (optional) | Tripwire, Intrusion, Abandoned/Missing Object |
| Advanced Intelligent Functions | Face Detection |
| Video | |
| Compression | Smart H.265+ / H.265 / Smart H.264+ / H.264 |
| Streaming Capability | Three (3) Streams |
| Resolution | 1080p (1920 x 1080), 1.3 MP (1280 x 960), |
| 720p (1280 x 720), D1 (704 x 480), | |
| VGA (640 x 480), CIF (352 x 240) | |
| Frame Rate | Main Stream: 1080p (1 to 60 fps) |
| Sub Stream 1: D1 (1 to 60 fps) | |
| Sub Stream 2: 1080p (1 to 30 fps) | |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.264: 24 to 9472 Kbps |
| H.265: 14 to 5632 Kbps | |
| Day/Night | Auto (ICR) / Color / B/W |
| BLC Mode | BLC / HLC / WDR (120 dB) |
| White Balance | Auto / Natural / Street Lamp / Outdoor / Manual |
| Gain Control | Auto / Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | Off / On (4 Zone, Rectangle) |
| Region of Interest | Off / On (4 Zone) |
| Smart IR | Support |
| Digital Zoom | 16x |
| Flip | 0° / 90° / 180° / 270° |
| Mirror | Off / On |
| Privacy Masking | Off / On (4 Area, Rectangle) |
| Audio | |
| Compression | G.711a / G.711Mu / AAC / G.726 |
| Network | |
| Ethernet | RJ-45 (10/100 Base-T) |
| Protocol | HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; |
| FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; | |
| UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; | |
| IGMP; SNMP | |
| Interoperability | ONVIF, PSIA, CGI |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 10 Users /20 Users |
| Edge Storage | NAS |
| Local PC for Instant Recording | |
| MicroSD Card, maximum 128 GB | |
| Web Viewer | IE, Safari |
| Management Software | Smart PSS, DSS |
| Mobile Operating System | IOS, Android |
| Certifications | |
| Safety | UL60950-1 |
| Electromagnetic Compatibility | FCC Part 15 Subpart B |
| Interface | |
| Audio Interface | In: One (1) Channel |
| Out: One (1) Channel | |
| Alarm | In: Two (2) Channels |
| Out: One (1) Channel | |
| Electrical | |
| Power Supply | DC12V, PoE (802.3af, Class 0) |
| Power Consumption | < 11.5 W |
| Environmental | |
| Operating Conditions | -30° C to +60° C (-22° F to +140° F), |
| Less than 95% RH | |
| Storage Conditions | -30° C to +60° C (-22° F to +140° F), |
| Less than 95% RH | |
| Ingress Protection | IP67 |
| Construction | |
| Casing | Metal |
| Dimensions | 273.20 mm x 95.0 mm x 96.40 mm |
| (10.76 in. x 3.74 in. x 3.79 in.) | |
| Net Weight | 1.07 kg (2.36 lb) |
| Gross Weight | 1.40 kg (3.09 lb) |
