USA/IPCamera/Super/DH IPC HFW82A1EN ZI
Contents
DH-IPC-HFW82A1EN-ZI
| Series: | Super |
| Image Sensor: | 1/2.8” 2M Exmor R CMOS |
| Resolution: | 2MP |
| H Field of View: | 87°-31° |
| Min. Illumination: | 0.005Lux/F1.4(Color), 0Lux/F1.4(IR on) |
| Day/Night: | ICR |
| Max. IR Range: | 165 feet |
| WDR: | 140dB |
| Compression: | H.264H/MJPEG/JPEG |
| FPS: | 12M(1~15fps)/3M (1 ~ 30fps) |
| Multi-Streaming: | 3 Streams |
| IVS: | Tripwire Intrusion Scene change Missing/Abandoned Audio detect Face detect People counting Heat map |
| ONVIF: | 2.4 |
| Audio In: | 1 |
| Audio Out: | 1 |
| Built In Microphone: | 1 |
| Memory Slot: | Micro SD-Max 128GB |
| Alarm In: | 1 |
| Alarm Out: | 1 |
| IP Rating: | 67 |
| IK Rating: | 10 |
| Working Temp: | -30°C~+60°C, Less than 95%RH |
| Power: | DC12V, PoE (802.3af) |
| Firmware: | URL |
Features
- 1/2.8” 2Megapixel progressive scan CMOS
- Support H.265/H.264/MJPEG dual codec
- Smart triple streams supported
- Max 25/30fps@1080P(1920x1080)
- Ultra 3D DNR
- Smart detection
- Intelligent Function
- 2.7 ~12mm varifocal motorized lens
- Max. IR LEDs length 50m
- Micro SD memory, IP67, PoE
CAD Images
Compression
FOV
Camera Height: 10m
Focal Length: 2.7mm
Target Horizontal Dist: 47.4m
Camera Height: 10m
Focal Length: 12mm
Target Horizontal Dist: 215.3m
Firmware
You can update your device with the IP Firmware Toolkit.
Firmware Update Instructions
- Instructions for Firmware Update via USB
- Instructions for Firmware Update via ConfigTool
- Instructions for Firmware Update via Internet Explorer
Firmware Update Download
Firmware Changelog
- Build Date: 12/25/15
- English, French, Spanish optional,English default,NTSC
Intelligent Features
Tripwire
Intrusion
Abandoned/Missing
People Counting
Heatmap
Audio Detection
Scene Change
Compatible Accessories
| Accessories Combo 1 |  PFA121
| |
| Accessories Combo 2 | PFA121
|
 PFA150
|
| Accessories Combo 3 | PFA121
|
 PFA152
|
| Accessories Combo 4 | PFA121
|
 PFA151
|
Product Diagram
.jpg)

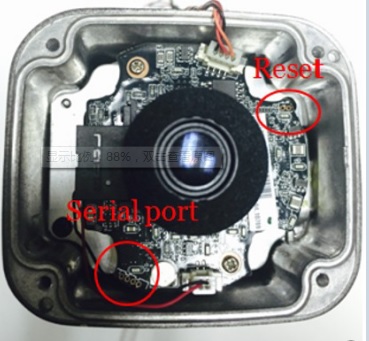

Reset Button
Specifications
| Model | DH-IPC-HFW82A1EN-Z(I) | |
| Camera | ||
| Image Sensor | 1/2.8”2Megapixel Exmor R CMOS | |
| Effective Pixels | 1920(H)x1080(V) | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | Auto/Manual, 1/3~1/100000s | |
| Min. Illumination | 0. 005Lux/F1.4( Color),0Lux/F1.4(IR on) | |
| S/N Ratio | More than 50dB | |
| Video Output | 1 port | |
| Camera Features | ||
| Max. IR LEDs Length | 50m | |
| Day/Night | Auto(ICR)/Color/B/W | |
| Backlight Compensation | BLC / HLC / Ultra WDR(140dB) | |
| White Balance | Auto/Manual | |
| Gain Control | Auto/Manual | |
| Noise Reduction | 3D | |
| Privacy Masking | Up to 4 areas | |
| Lens | ||
| Focal Length | 2.7 -12mm motorized | |
| Max Aperture | F1.4 | |
| Focus Control | Auto | |
| Angle of View | H:99°(Wide)~35°(Tele) | |
| Lens Type | Motorized/Auto Iris(DC) | |
| Mount Type | Board-in Type | |
| Video | ||
| Compression | H.265/H.264/MJPEG | |
| Resolution | 1080P(1920×1080)/720P(1280×720)/D1(704×576) /CIF(352×288) | |
|
Frame Rate |
Main Stream | 1080P (1~30fps) |
| Sub Stream | D1/CIF(1 ~ 30fps) | |
| Third Stream | 1080P/720P/D1(1 ~ 30fps) | |
| Bit Rate | H.264: 40K ~ 10Mbps | |
| Audio | ||
| Compression | G.711a / G.711u/AAC | |
| Interface | 1/1 channel In/Out | |
| Smart Function(Only for “-ZI” model ) | ||
| Smart detection | Tripwire | |
| Intrusion | ||
| Scene change | ||
| Missing/Abandoned | ||
| Audio detect | ||
| Face detect | ||
| Intelligent function | People counting | |
| Heat map | ||
| Network | ||
| Ethernet | RJ-45 (10/100Base-T) | |
| Wi-Fi | N/A | |
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour | |
| ONVIF | ONVIF,PSIA,CGI | |
| Max. User Access | 20 users | |
| Smart Phone | iPhone, iPad, Android, Windows Phone | |
| Auxiliary Interface | ||
| Memory Slot | Micro SD, Max 128GB | |
| Alarm | 1/1 channel In/Out | |
| General | ||
| Power Supply | DC12V(AC24V optional), PoE (802.3af) | |
| Power Consumption | Max 15W | |
| Working Environment | -30°C~+60°C, Less than 95% RH | |
| Ingress Protection | IP67 | |
| Dimensions | 272.9mm × 94.9mm×94.9mm | |
| Weight | 1.4kg | |
