USA/IPCamera/Ultra/DH-IPC-HF812A0EN

DH-IPC-HF812A0EN

DH-IPC-HF812A0EN-I

Specifications	Quick Start Guide	Manual	Firmware
			Build Date: 12-27-2016

DH-IPC-HF812A0EN

Series:	Ultra
Image Sensor:	1/1.7” 12M Exmor R CMOS
Resolution:	4000x3000
H Field of View:	-
Min. Illumination:	0.05Lux/F1.2(Color) & 0.005Lux/F1.2(B/W)
Day/Night:	ICR
Max. IR Range:	-
WDR:	DWDR
Compression:	H.264H/MJPEG/JPEG
FPS:	20fps@12MP; 30fps@4K
Multi-Streaming:	3 Streams
IVS:	-
ONVIF:	2.4
Audio In:	1
Audio Out:	1
Built In Microphone:	1
Memory Slot:	Micro SD-Max 128GB
Alarm In:	2
Alarm Out:	1
IP Rating:	-
IK Rating:	-
Working Temp:	-20°F to 140°F
Power:	DC12V/ac24v, PoE (802.3af), Max 8W
Firmware:	URL

Features

• Max 15fps@12MP (4000x3000)
• True Day/Night
• DWDR
• Defog, ROI, EIS
• 2/1 Alarm in/out, 1/1 Audio in/out, Built in Mic
• Intelligent Video System
• Onboard Storage
• 1/1.7" 12 Megapixel progressive scan CMOS
• Support H.264/MJPEG dual codec
• Smart triple streams supported
• Auto back focus
• 100/1000M Base-T Ethernet

EOL: End of Life

EOL Date: 7/5/2017

Suggested Replacement

•

  NK8BA4

CAD Images

•

Compression

•

  Products with H.264

Firmware

You can update your device with the IP Firmware Toolkit.

Firmware Update Instructions

• Instructions for Firmware Update via USB
• Instructions for Firmware Update via ConfigTool
• Instructions for Firmware Update via Internet Explorer

Compatible Accessories

Compatible Accessories

Accessories Combo 1	PFA122	PFB110W
Accessories Combo 2	PFB121W	PFA121
Accessories Combo 3	PFB110W
Accessories Combo 4	PFB121W
Accessories Combo 5	PFB110W
Accessories Combo 6	PFB110W	PFA122	PFA150
Accessories Combo 7	PFB121W	PFA121	PFA150
Accessories Combo 8	PFB110W	PFA122	PFA151
Accessories Combo 9	PFB121W	PFA121	PFA151

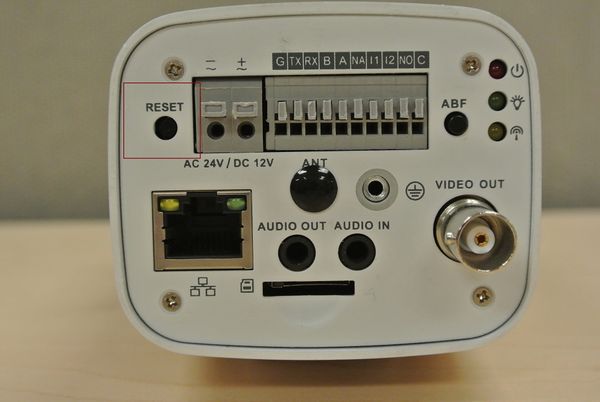

Reset Button
