USA/IPCamera/Ultra/N68BL7ZI
Contents

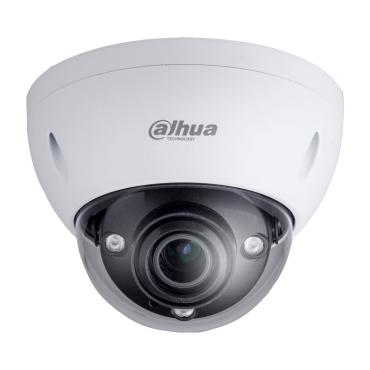

N68BL7ZI
Features
- 1/1.8-in. 6 MP Progressive Scan CMOS
- H.265 and H.264 Triple-stream Encoding
- 6 MP at 30 fps (3072 x 2048)
- Digital WDR and Day/Night (ICR)
- Multiple Network Monitoring: Web viewer, CMS (DSS/PSS) and DMSS
- 4.1 mm to 16.4 mm Motorized Lens
- Maximum IR LED Length 50 m (164 ft)
- IP67 Ingress Protection and IK10 Vandal Resistance
Compression
FOV
Camera Height: 10m
Focal Length: 4.1mm
Target Horizontal Dist: 54.7m
Camera Height: 10m
Focal Length: 16.4mm
Target Horizontal Dist: 222.2m
Firmware
You can update your device with the IP Firmware Toolkit.
Firmware Update Download
Intelligent Features
Tripwire
Intrusion
Abandoned/Missing
Specifications
| Camera | |
| Image Sensor | 1/1.8-in. 6 MP CMOS |
| Effective Pixels | 3072(H) x 2048(V) |
| RAM/ROM | 1024 MB / 128 MB |
| Scanning System | Progressive |
| Minimum Illumination | Color: 0.02 Lux at F1.53 |
| B/W: 0 Lux at F1.53 (IR on) | |
| S/N Ratio | More than 50 dB |
| IR Distance | Distance up to 50.0 m (164.04 ft) |
| IR On/Off Control | Auto, Manual |
| IR LEDs | Three (3) |
| Lens | |
| Lens Type | Motorized /Auto Iris (HALL) |
| Mount Type | Board-in |
| Focal Length | 4.1 mm to 16.4 mm motorized |
| Max. Aperture | F1.53 |
| Angle of View | Horizontal: 35° to 107° |
| Vertical: 25° to 60° | |
| Optical Zoom | 4x |
| Focus Control | Motorized |
| Close Focus Distance | 1.0 m (3.28 ft) |
| Pan/Tilt/Rotation | |
| Range | Pan: 0° to 355° |
| Tilt:0° to 65° | |
| Rotation: 0° to 355° | |
| Intelligence | |
| IVS | Tripwire, Intrusion, Abandoned/Missing Object |
| Advanced Intelligent Functions | Face Detection, People Counting, Heat Map |
| Video | |
| Compression | H.265, H.264 |
| Streaming Capability | Three (3) Streams |
| Resolution | 6 MP (3072 x 2048), 5 MP (2560 x 1920), |
| 3 MP (2048 x 1536), 3 MP(2304 x 1296), | |
| 1080p (1920 x 1080), 1.3 MP (1280 x 960), | |
| 720p (1280 x 720), D1 (704 x 480), | |
| VGA (640 x 480), CIF (342 x 240) | |
| Frame Rate | Main Stream: 6 MP at 30 fps |
| Sub Stream 1: D1 at 30 fps | |
| Sub Stream 2: 1080p at 30 fps | |
| Bit Rate Control | CBR, VBR |
| Bit Rate | H.264: 24 to 16384 Kbps |
| H.265: 14 to 9984 Kbps | |
| Day/Night | Auto (ICR), Color, B/W |
| BLC Mode | BLC, HLC, DWDR, SSA |
| White Balance | Auto, Natural, Street Lamp, Outdoor, Manual |
| Gain Control | Auto, Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | Off, On (4 Zone, Rectangle) |
| Region of Interest | Off, On (4 Zone) |
| Electronic Image Stabilization (EIS) | Support |
| Smart IR | Support |
| Defog | Support |
| Digital Zoom | 16x |
| Flip | 0° / 90° / 180° / 270° |
| Mirror | Off, On |
| Privacy Masking | Off, On (4 Area, Rectangle) |
| Audio | |
| Compression | G.711a, G.711Mu, AAC, G.726 |
| Network | |
| Ethernet | RJ-45 (100/1000 Base-T) |
| Protocol | HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, |
| DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, | |
| Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP | |
| Interoperability | ONVIF, PSIA, CGI |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 10 Users / 20 Users |
| Edge Storage | NAS |
| Local PC for instant recording | |
| Mirco SD card 128 GB | |
| Web Viewer | IE, Firefox, Safari |
| Management Software | Smart PSS, DSS |
| Mobile Operating System | IOS, Android |
| Certifications | |
| Safety | UL60950-1 |
| Electromagnetic Compatibility (EMC) | FCC Part 15 Subpart B |
| Interface | |
| Audio Interface | In: One (1) Channel |
| Out: One (1) Channel | |
| Alarm | In: One (1) Channel |
| Out: One (1) Channel | |
| Electrical | |
| Power Supply | 12 VDC, 24 VAC, PoE+ (802.3at, Class 4) |
| Power Consumption | < 18 W |
| Environmental | |
| Operating Conditions | -40° C to +60° C (-40° F to +140° F), |
| Less than 95% RH | |
| Storage Conditions | -40° C to +60° C (-40° F to +140° F), |
| Less than 95% RH | |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Construction | |
| Casing | Metal |
| Dimensions | ø159.10 mm x 117.90 mm (ø6.26 in. x 4.64 in.) |
| Net Weight | 0.96 kg (2.12 lb) |
| Gross Weight | 1.75 kg (3.56 lb) |
