USA/IPCamera/Ultra/N84BL44I
Contents

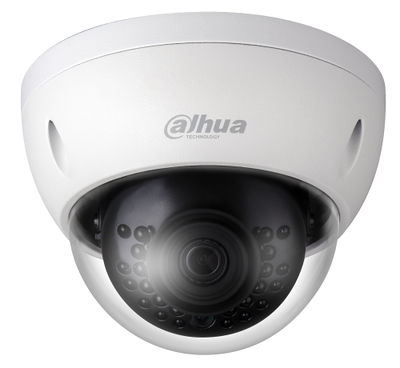

N84BL44I
.jpg)
Features
- 1/2.5-in. 8 MP Progressive Scan CMOS
- Smart H.265+ and H.264 Triple-stream Encoding
- 15 fps @ 4K (3840 x 2160) and 30 fps @ 3 MP (2304 x 1296)
- Smart Detection Supported
- Digital WDR and Day/Night IR Cut Filter
- 4 mm Fixed Lens
- Max. IR LED Length 30 m (98 ft)
- Micro SD Memory, IP67, IK10 PoE
Compression
FOV
Camera Height: 10m
Focal Length: 4mm
Target Horizontal Dist: 63.1m
Firmware
You can update your device with the IP Firmware Toolkit.
Firmware Update Instructions
- Instructions for Firmware Update via USB
- Instructions for Firmware Update via ConfigTool
- Instructions for Firmware Update via Internet Explorer
Firmware Update Download
Firmware Changelog
- Build Date: 1/05/17
- English, French, Spanish optional,English default
- NTSC
Intelligent Features
Tripwire
Intrusion
Abandoned/Missing
Specifications
| Camera | |
| Image Sensor | 1/2.5-in. 8 MP Progressive Scan CMOS |
| Effective Pixels | 3840(H) x 2160(V) |
| RAM/ROM | 512 MB / 32 MB |
| Scanning System | Progressive |
| Minimum Illumination | Color: 0.05 lux at F1.6 |
| B/W: 0 lux at F1.6 (IR on) | |
| S/N Ratio | More than 50 dB |
| IR Distance | Distance up to 30 m (98.42 ft) |
| IR On/Off Control | Auto / Manual |
| IR LEDs | 24 |
| Lens | |
| Lens Type | Fixed |
| Mount Type | Board-in |
| Focal Length | 4 mm |
| Max. Aperture | F1.6 |
| Angle of View | Horizontal: 87° |
| Vertical: 48° | |
| Focus Control | Fixed |
| Pan/Tilt/Rotation | |
| Range | Pan: 0˚ to 355˚ |
| Tilt: 0˚ to 64˚ | |
| Rotation: 0˚ to 355˚ | |
| Intelligence | |
| IVS (optional) | Tripwire, Intrusion, Abandoned/Missing Object |
| Advanced Intelligent Functions | Face Detection |
| Video | |
| Compression | Smart H.265+ / H.265 / Smart H.264+ / H.264 |
| Streaming Capability | Three (3) Streams |
| Resolution | 4K/8 MP (3840 x 2160), 6 MP (3072 x 2048), |
| 5 MP (2560 x 1920), 3 MP (2048 x 1536), | |
| 3 MP (2304 x 1296), 1080p (1920 x 1080), | |
| 1.3 MP (1280 x 960), 720p (1280 x 720), | |
| D1 (704 x 480), VGA (640 x 480), CIF (352 x 240) | |
| Frame Rate | Main Stream: 4K/8 MP (1 to 15 fps) or |
| 3 MP (1 to 30 fps) | |
| Sub Stream 1 : D1 (1 to 30 fps) | |
| Sub Stream 2: 720p (1 to 30 fps) | |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.264: 24 K to 10240 Kbps |
| H.265: 14 K to 9984 Kbps | |
| Day/Night | Auto (ICR) / Color / B/W |
| BLC Mode | BLC / HLC / DWDR |
| White Balance | Auto / Natural / Street Lamp / Outdoor / Manual |
| Gain Control | Auto / Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | Off / On (4 Zone, Rectangle) |
| Region of Interest | Off / On (4 Zone) |
| Smart IR | Supported |
| Digital Zoom | 16x |
| Flip | 0° / 90° / 180° / 270° |
| Mirror | Off / On |
| Privacy Masking | Off / On (4 Area, Rectangle) |
| Audio | |
| Compression | G.711a / G.711Mu / AAC / G.726 |
| Network | |
| Ethernet | RJ-45 (10/100 Base-T) |
| Protocol | HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; |
| FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; | |
| UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; | |
| IGMP; SNMP | |
| Interoperability | ONVIF, PSIA, CGI |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 10 Users /20 Users |
| Edge Storage | NAS |
| Local PC for Instant Recording | |
| MicroSD Card, maximum 128 GB | |
| Web Viewer | IE, Safari |
| Management Software | Smart PSS, DSS |
| Mobile Operating System | IOS, Android |
| Certifications | |
| Safety | UL60950-1 |
| Electromagnetic Compatibility | FCC Part 15 Subpart B |
| Interface | |
| Audio Interface | In: One (1) Channel |
| Out: One (1) Channel | |
| Alarm | In: One (1) Channel |
| Out: One (1) Channel | |
| Electrical | |
| Power Supply | DC12V, PoE (802.3af, Class 0) |
| Power Consumption | < 5 W |
| Environmental | |
| Operating Conditions | -30° C to +60° C (-22° F to +140° F), |
| Less than 95% RH | |
| Storage Conditions | -30° C to +60° C (-22° F to +140° F), |
| Less than 95% RH | |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Construction | |
| Casing | Metal |
| Dimensions | Φ109.90 mm x 81.0 mm (Φ4.33 in. x 3.19 in.) |
| Net Weight | 0.41 kg (0.91 lb) |
| Gross Weight | 0.53 kg (1.17 lb) |
