DH-IPC-HDBW11A0EN-W-2.8MM, 3.6MM
EOL Date
- December 31, 2017
Suggested Replacement
- DH-IPC-HDBW13A0EN-W
| +DH-IPC-HDBW11A0EN-W-2.8MM, 3.6MM | +
|
| Series: | Wi-Fi |
| Image Sensor: | 1/3” 1.3MP CMOS |
| Lens: | 2.8mm/F2.0;3.6mm/F2.0 optional |
| Resolution: | 1.3M(1280×960) |
| H Field of View: | 92°/72° |
| Min. Illumination: | - |
| Day/Night: | ICR |
| Max. IR Range: | 30m |
| WDR: | DWDR |
| Compression: | H.264/MJPEG |
| FPS: | 30fps@1.3M |
| Multi-Streaming: | 2 Streams |
| Adjustment Range: | Pan: 0°~360° Tilt: 0°~65° Rotation: 0°~355° |
| Pan/ Tilt Range: | - |
| IVS: | - |
| ONVIF: | 2.4 |
| Audio In: | - |
| Audio Out: | - |
| Memory Slot: | 128GB |
| Alarm In: | - |
| Alarm Out: | - |
| Wi-Fi: | Wi-Fi(IEEE802.11b/g/n) 50m(open field) |
| Wi-Fi Smart Config: | Yes |
| IP Rating: | 67 |
| IK Rating: | 10 |
| Working Temp: | -30°C~+50°C |
| Power: | DC5V, Max 4.6W |
| Firmware: | URL |
Features
- WiFi Support (IEEE802.11b/g/n)
- Max 30fps@1.3MP (1280×960)
- DWDR
- True Day/Night
- Fixed Lens Options 2.8mm and 3.6mm
- Smart IR 30m (98ft)
- Outdoor Rated IP67
- Vandal Resistant IK10
CAD Images
Compression
FOV
Camera Height: 10m
Focal Length: 2.8mm
Target Horizontal Dist: 57.5m
Camera Height: 10m
Focal Length: 3.6mm
Target Horizontal Dist: 74.3m
Example Photos
2700k Full Brightness ~187lux
2700k Half Brightness ~97lux
5000k Full Brightness ~205lux
5000k Half Brightness ~76lux
2700k+5000k Full Brightness ~404lux
Lights Out ~1lux
Overhead+2700k+5000k ~632lux
Firmware Update Instructions
- Instructions for Firmware Update via USB
- Instructions for Firmware Update via ConfigTool
- Instructions for Firmware Update via Internet Explorer
Firmware Update Download

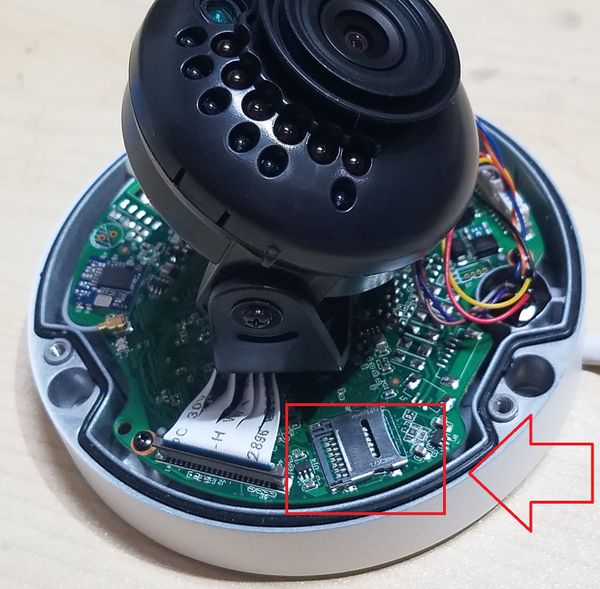

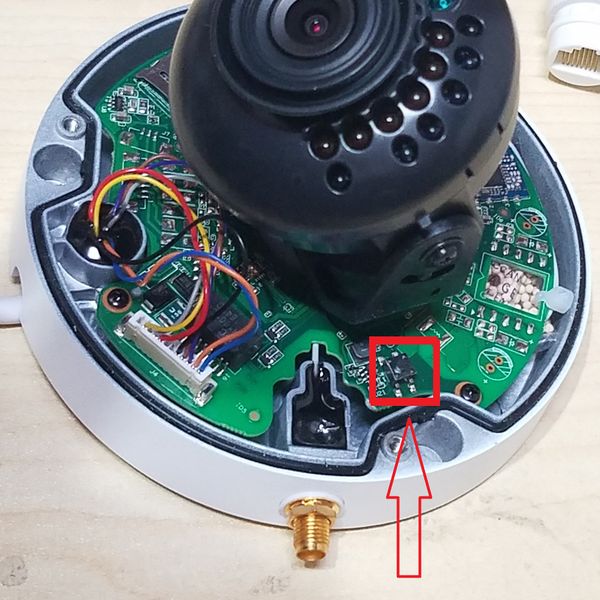

Reset Button and SD Card Slot
Compatible Accessories
| Accessories Combo 1 |  PFA136
| |
| Accessories Combo 2 |  PFB203W
| |
| Accessories Combo 3 | PFA136
|
 PFA150
|
| Accessories Combo 4 | PFB203W
|
 PFA152
|
| Accessories Combo 5 | PFA136
|
 PFA151
|
Specifications
| Camera | |
| Image Sensor | 1/3" CMOS |
| Effective Pixels | 1920(H) x 960(V) |
| ROM / RAM | 16MB / 256MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/1 ~ 1/100,000s |
| Minimum Illumination | Color: 0.1 Lux@F2.0; |
| B/W: 0.01 Lux@F2.0; | |
| 0 Lux (IR on) | |
| S/N Ratio | More than 50dB |
| IR Distance | Distance Up to 30m (98ft) |
| IR On/Off Control | Auto / Manual |
| IR LEDs | 24 |
| Lens | |
| Lens Type | Fixed |
| Mount Type | Board-in |
| Focal Length | 2.8mm, 3.6mm options |
| Max Aperture | F2.0/F2.0 |
| Angle of View | H: 92°/72° |
| Focus Control | Fixed |
| Axis | |
| Pan/Tilt Range | Pan: 0° ~ 355°; Tilt: 0° ~ 65°, Rotation：0° ~ 355° |
| Video | |
| Compression | H.264/MJPEG |
| Streaming Capability | 2 Streams |
| Resolution | 1.3MP (1280×960)/720p (1280×720)/ VGA (640×480) / QVGA (320×240) |
| Frame Rate | Main Stream 1.3MP/720p (1 ~ 30fps) |
| Sub Stream 1 VGA/QVGA (1 ~ 30fps) | |
| Bit Rate Control | CBR / VBR |
| Bit Rate | H.264: 32K ~ 8192Kbps |
| Day/Night | Auto (ICR) / Color / B/W |
| BLC Mode | BLC / HLC / DWDR |
| White Balance | Auto / Sunny / Night / Outdoor / Customized |
| Gain Control | Auto / Manual |
| Noise Reduction | 3D DNR |
| Motion Detetion | Off / On (4 Zone, Rectangle) |
| Region of Interest | Off / On (4 Zone) |
| Smart IR | Support |
| Digital Zoom | 16x |
| Flip | 0°/90°/180°/270° |
| Mirror | Off / On |
| Privacy Masking | Off / On (4 Area, Rectangle) |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| Wi-Fi | Wi-Fi (IEEE802.11b/g/n) |
| 50m (open field) | |
| Protocol | IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x |
| Interoperability | ONVIF, CGI |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 20 |
| Edge Storage | NAS (Network Attached Storage), Local PC for instant recording,Micro SD Card 128GB |
| Web Viewer | IE10…. |
| Management Software | Smart PSS, DSS |
| Smart Phone | Android, Ios |
| Certifications | FCC (SEFD1509190-B ) UL (E234884-A60-UL) |
| Electrical | |
| Power Supply | 12V DC ±25% |
| Power Consumption | Max. 4.0W (12V DC, IR On), |
| Max. 5.6W (IR On) | |
| Environmental | |
| Operating Conditions | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH |
| Storage Conditions | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH |
| Ingress Protection & Vandal Resistance | IP67, IK10 |
| Construction | |
| Casing | Metal |
| Dimensions | Φ110mm × 81mm (4.33" x 3.19") |
| Net Weight | 0.38Kg (0.84lb) |
| Gross Weight | 0.44Kg (0.97lb) |
