+ | {| class="infobox" style="height:539px;width=288;border-collapse: collapse;border-left:solid 1px lightgrey;border-right:solid 1px lightgrey;border-top:solid 1px lightgrey;border-bottom:solid 1px lightgrey;" | ||
+ | |- | ||
+ | |+'''X72B2A''' | ||
+ | |+[[file:X72B2A.png|350px]] | ||
+ | |- | ||
+ | | style="border-collapse: collapse;border-left:solid 1px lightgrey;border-right:solid 1px lightgrey;border-top:solid 1px lightgrey;border-bottom:solid 1px lightgrey;" |Series: | ||
+ | | style="border-collapse: collapse;border-left:solid 1px lightgrey;border-right:solid 1px lightgrey;border-top:solid 1px lightgrey;border-bottom:solid 1px lightgrey;" |Pro | ||
+ | |- | ||
+ | | style="border-collapse: collapse;border-left:solid 1px lightgrey;border-right:solid 1px lightgrey;border-top:solid 1px lightgrey;border-bottom:solid 1px lightgrey;" |Compatible Video: | ||
+ | | style="border-collapse: collapse;border-left:solid 1px lightgrey;border-right:solid 1px lightgrey;border-top:solid 1px lightgrey;border-bottom:solid 1px lightgrey;" |HDCVI/AHD/TVI/CVBS (Auto-detect) | ||
+ | |- | ||
+ | | style="border-collapse: collapse;border-left:solid 1px lightgrey;border-right:solid 1px lightgrey;border-top:solid 1px lightgrey;border-bottom:solid 1px lightgrey;" |HD-CVI/Analog Channels: | ||
+ | | style="border-collapse: collapse;border-left:solid 1px lightgrey;border-right:solid 1px lightgrey;border-top:solid 1px lightgrey;border-bottom:solid 1px lightgrey;" |8 | ||
+ | |- | ||
+ | | style="border-collapse: collapse;border-left:solid 1px lightgrey;border-right:solid 1px lightgrey;border-top:solid 1px lightgrey;border-bottom:solid 1px lightgrey;" |IP Channels: | ||
+ | | style="border-collapse: collapse;border-left:solid 1px lightgrey;border-right:solid 1px lightgrey;border-top:solid 1px lightgrey;border-bottom:solid 1px lightgrey;" |8 + 8 | ||
+ | |- | ||
+ | | style="border-collapse: collapse;border-left:solid 1px lightgrey;border-right:solid 1px lightgrey;border-top:solid 1px lightgrey;border-bottom:solid 1px lightgrey;" |Video Compression: | ||
+ | | style="border-collapse: collapse;border-left:solid 1px lightgrey;border-right:solid 1px lightgrey;border-top:solid 1px lightgrey;border-bottom:solid 1px lightgrey;" |Smart H.265+, H.265, Smart H.264+, H.264 | ||
+ | |- | ||
+ | | style="border-collapse: collapse;border-left:solid 1px lightgrey;border-right:solid 1px lightgrey;border-top:solid 1px lightgrey;border-bottom:solid 1px lightgrey;" |HD-CVI/Analog Recording<br>Resolutions: | ||
+ | | style="border-collapse: collapse;border-left:solid 1px lightgrey;border-right:solid 1px lightgrey;border-top:solid 1px lightgrey;border-bottom:solid 1px lightgrey;" |8 MP at 15 fps;<br>6 MP or 5 MP at 20 fps;<br>4 MP, 3 MP, 1080p, 720p, 960H, D1, CIF at 30 fps | ||
+ | |- | ||
+ | | style="border-collapse: collapse;border-left:solid 1px lightgrey;border-right:solid 1px lightgrey;border-top:solid 1px lightgrey;border-bottom:solid 1px lightgrey;" |IP Recording Resolutions: | ||
+ | | style="border-collapse: collapse;border-left:solid 1px lightgrey;border-right:solid 1px lightgrey;border-top:solid 1px lightgrey;border-bottom:solid 1px lightgrey;" |Up to 8 MP | ||
+ | |- | ||
+ | | style="border-collapse: collapse;border-left:solid 1px lightgrey;border-right:solid 1px lightgrey;border-top:solid 1px lightgrey;border-bottom:solid 1px lightgrey;" |Input Bandwidth: | ||
+ | | style="border-collapse: collapse;border-left:solid 1px lightgrey;border-right:solid 1px lightgrey;border-top:solid 1px lightgrey;border-bottom:solid 1px lightgrey;" |64 Mbps | ||
+ | |- | ||
+ | | style="border-collapse: collapse;border-left:solid 1px lightgrey;border-right:solid 1px lightgrey;border-top:solid 1px lightgrey;border-bottom:solid 1px lightgrey;" |Video Output: | ||
+ | | style="border-collapse: collapse;border-left:solid 1px lightgrey;border-right:solid 1px lightgrey;border-top:solid 1px lightgrey;border-bottom:solid 1px lightgrey;" |One (1) HDMI (3840 x 2160)<br>One (1) VGA (1920 x 1080) | ||
+ | |- | ||
+ | | style="border-collapse: collapse;border-left:solid 1px lightgrey;border-right:solid 1px lightgrey;border-top:solid 1px lightgrey;border-bottom:solid 1px lightgrey;" |HDD: | ||
+ | | style="border-collapse: collapse;border-left:solid 1px lightgrey;border-right:solid 1px lightgrey;border-top:solid 1px lightgrey;border-bottom:solid 1px lightgrey;" |Two (2) SATA Ports, up to 10 TB capacity for each disk | ||
+ | |- | ||
+ | | style="border-collapse: collapse;border-left:solid 1px lightgrey;border-right:solid 1px lightgrey;border-top:solid 1px lightgrey;border-bottom:solid 1px lightgrey;" |RAID: | ||
+ | | style="border-collapse: collapse;border-left:solid 1px lightgrey;border-right:solid 1px lightgrey;border-top:solid 1px lightgrey;border-bottom:solid 1px lightgrey;" |- | ||
+ | |- | ||
+ | | style="border-collapse: collapse;border-left:solid 1px lightgrey;border-right:solid 1px lightgrey;border-top:solid 1px lightgrey;border-bottom:solid 1px lightgrey;" |eSATA: | ||
+ | | style="border-collapse: collapse;border-left:solid 1px lightgrey;border-right:solid 1px lightgrey;border-top:solid 1px lightgrey;border-bottom:solid 1px lightgrey;" |0 | ||
+ | |- | ||
+ | | style="border-collapse: collapse;border-left:solid 1px lightgrey;border-right:solid 1px lightgrey;border-top:solid 1px lightgrey;border-bottom:solid 1px lightgrey;" |Mini SAS: | ||
+ | | style="border-collapse: collapse;border-left:solid 1px lightgrey;border-right:solid 1px lightgrey;border-top:solid 1px lightgrey;border-bottom:solid 1px lightgrey;" |0 | ||
+ | |- | ||
+ | | style="border-collapse: collapse;border-left:solid 1px lightgrey;border-right:solid 1px lightgrey;border-top:solid 1px lightgrey;border-bottom:solid 1px lightgrey;" |Audio In: | ||
+ | | style="border-collapse: collapse;border-left:solid 1px lightgrey;border-right:solid 1px lightgrey;border-top:solid 1px lightgrey;border-bottom:solid 1px lightgrey;" |4 RCA | ||
+ | |- | ||
+ | | style="border-collapse: collapse;border-left:solid 1px lightgrey;border-right:solid 1px lightgrey;border-top:solid 1px lightgrey;border-bottom:solid 1px lightgrey;" |Audio Out: | ||
+ | | style="border-collapse: collapse;border-left:solid 1px lightgrey;border-right:solid 1px lightgrey;border-top:solid 1px lightgrey;border-bottom:solid 1px lightgrey;" |1 RCA | ||
+ | |- | ||
+ | | style="border-collapse: collapse;border-left:solid 1px lightgrey;border-right:solid 1px lightgrey;border-top:solid 1px lightgrey;border-bottom:solid 1px lightgrey;" |Alarm In: | ||
+ | | style="border-collapse: collapse;border-left:solid 1px lightgrey;border-right:solid 1px lightgrey;border-top:solid 1px lightgrey;border-bottom:solid 1px lightgrey;" |8 | ||
+ | |- | ||
+ | | style="border-collapse: collapse;border-left:solid 1px lightgrey;border-right:solid 1px lightgrey;border-top:solid 1px lightgrey;border-bottom:solid 1px lightgrey;" |Alarm Out: | ||
+ | | style="border-collapse: collapse;border-left:solid 1px lightgrey;border-right:solid 1px lightgrey;border-top:solid 1px lightgrey;border-bottom:solid 1px lightgrey;" |3 | ||
+ | |- | ||
+ | | style="border-collapse: collapse;border-left:solid 1px lightgrey;border-right:solid 1px lightgrey;border-top:solid 1px lightgrey;border-bottom:solid 1px lightgrey;" |Network: | ||
+ | | style="border-collapse: collapse;border-left:solid 1px lightgrey;border-right:solid 1px lightgrey;border-top:solid 1px lightgrey;border-bottom:solid 1px lightgrey;" |1 Gigabit Port | ||
+ | |- | ||
+ | | style="border-collapse: collapse;border-left:solid 1px lightgrey;border-right:solid 1px lightgrey;border-top:solid 1px lightgrey;border-bottom:solid 1px lightgrey;" |USB: | ||
+ | | style="border-collapse: collapse;border-left:solid 1px lightgrey;border-right:solid 1px lightgrey;border-top:solid 1px lightgrey;border-bottom:solid 1px lightgrey;" |One (1) USB 2.0 Port and One (1) USB 3.0 Port | ||
+ | |- | ||
+ | | style="border-collapse: collapse;border-left:solid 1px lightgrey;border-right:solid 1px lightgrey;border-top:solid 1px lightgrey;border-bottom:solid 1px lightgrey;" |Power: | ||
+ | | style="border-collapse: collapse;border-left:solid 1px lightgrey;border-right:solid 1px lightgrey;border-top:solid 1px lightgrey;border-bottom:solid 1px lightgrey;" |12 VDC, 5 A, 50/60 Hz<br><15W (No HDD) | ||
+ | |- | ||
+ | | style="border-collapse: collapse;border-left:solid 1px lightgrey;border-right:solid 1px lightgrey;border-top:solid 1px lightgrey;border-bottom:solid 1px lightgrey;" |IVS: | ||
+ | | style="border-collapse: collapse;border-left:solid 1px lightgrey;border-right:solid 1px lightgrey;border-top:solid 1px lightgrey;border-bottom:solid 1px lightgrey;" |Yes (All Analog Channels, when IP Channels are Disabled) | ||
+ | |- | ||
+ | | style="border-collapse: collapse;border-left:solid 1px lightgrey;border-right:solid 1px lightgrey;border-top:solid 1px lightgrey;border-bottom:solid 1px lightgrey;" |Fisheye Dewarp: | ||
+ | | style="border-collapse: collapse;border-left:solid 1px lightgrey;border-right:solid 1px lightgrey;border-top:solid 1px lightgrey;border-bottom:solid 1px lightgrey;" |No | ||
+ | |- | ||
+ | | style="border-collapse: collapse;border-left:solid 1px lightgrey;border-right:solid 1px lightgrey;border-top:solid 1px lightgrey;border-bottom:solid 1px lightgrey;" |POS: | ||
+ | | style="border-collapse: collapse;border-left:solid 1px lightgrey;border-right:solid 1px lightgrey;border-top:solid 1px lightgrey;border-bottom:solid 1px lightgrey;" |Yes | ||
+ | |- | ||
+ | | style="border-collapse: collapse;border-left:solid 1px lightgrey;border-right:solid 1px lightgrey;border-top:solid 1px lightgrey;border-bottom:solid 1px lightgrey;" |Spot Out/ Video Matrix: | ||
+ | | style="border-collapse: collapse;border-left:solid 1px lightgrey;border-right:solid 1px lightgrey;border-top:solid 1px lightgrey;border-bottom:solid 1px lightgrey;" |Yes, HDMI or VGA, configurable | ||
+ | |- | ||
+ | |} | ||
===Features=== | ===Features=== |
Revision as of 19:13, 26 March 2020

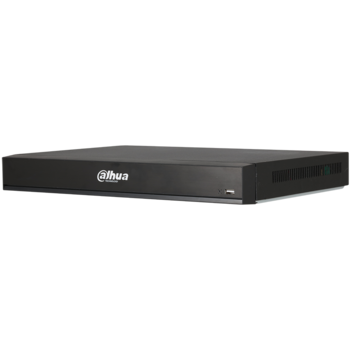

X72B2A
Specifications | Quick Start Guide | Manual | Firmware |
---|---|---|---|
Coming Soon |
Features
- 4K at 15 fps Recording Resolution on All HDCVI Channels
- Dual-stream Video Recording
- Smart H.265+ and Smart H.264+ Dual Codec
- Auto-detection and Auto-configuration of Video Inputs
- 8 + 8 IP Camera Channels, each channel up to 8 MP
- Maximum 64 Mbps Incoming Bandwidth
- Smart Search and Intelligent Video System
- Internet of Things (IoT) and Point of Sale (POS) Support
- Spot Output
- Five-year Warranty (for products sold through an authorized Dahua dealer)
Compression
Intelligent Features
Notes
- IVS rules only active when additional IP Channels is not active:
Tripwire/Intrusion-> All channels
Abandoned/Missing Object-> Channels 1-4
- IVS rules deactivate when Smart Codec is On
Intelligent Features
Interfaces
SystemUI New | WebUI New | SmartPSS | DSS Express S |
---|
Product Images
Product Box | Box Contents | Reset Button | Front Panel | Back Panel | CAD |
---|
Specifications
