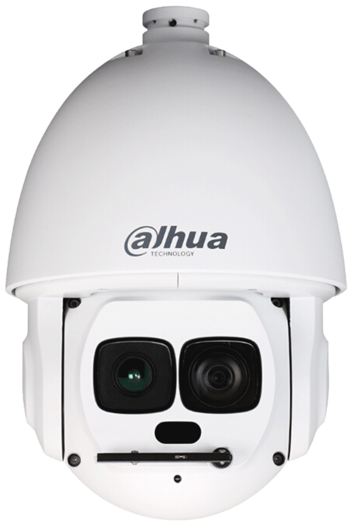

6AL245UNI
| Specifications | Quick Start Guide | Manual | Firmware | PTZ Firmware |
|---|---|---|---|---|
Build Date: 10-11-2021
|
Build Date: 12-24-2019
|
| Series: | Ultra |
| Body: | PTZ |
| Image Sensor: | 1/2.8-in. STARVIS™ CMOS |
| Resolution: | 2 MP, 1920(H) x 1080(V) |
| Angle of View: | Horizontal: 70.3° to 1.8° |
| Lens Type: | Varifocal |
| Focal Length: | 3.95 mm to 177.7 mm |
| Optical Zoom: | 45x |
| Min. Illumination: | Color: 0.005 Lux at F1.6 0 Lux with IR on |
| Day/Night: | Auto (ICR), Color, B/W |
| Max. IR Range: | Up to 550 m (1804.46 ft) |
| WDR: | 120dB |
| Video Compression: | Smart H.265+, H.265, Smart H.264+, H.264 |
| Audio Compression: | G.711a, G.711Mu, AAC, G.722, G.726, G.729, MPEG2-L2 |
| Frame Rate: | 1080p, 1.3 MP or 720p at 60 fps |
| Multi-Streaming: | 3 Streams |
| Pan/Tilt Range: | Pan: 0° to 360° Endless Tilt: -20° to 90°, Auto Flip 180° |
| Preset Speed: | 300 Presets Pan: 240° /s Tilt: 200° /s |
| IVS: | Motion, Tripwire, Intrusion, Scene Change, Abandoned/Missing Object, Facial Detection, Heat Map, Auto-tracking |
| ONVIF: | Yes |
| Audio In: | One (1) Channel |
| Audio Out: | One (1) Channel |
| Memory Slot: | Micro SD Slot, maximum 128 GB |
| Alarm In: | Seven (7) Channels |
| Alarm Out: | Two (2) Channels |
| IP Rating: | 67 |
| IK Rating: | - |
| Operating Temp: | –40° C to +60° C (–40° F to +140° F), Less than 90% RH |
| Power: | 24 VAC, 3 A (± 25%) or via Dahua proprietary Hi-PoE power source < 38 W |
| ePoE: | No |
Features
- 1/2.8-in. 2 MP STARVIS™ CMOS Sensor
- Powerful45x Optical Zoom
- Starlight Technology for Ultra-low Light Sensitivity
- Triple-stream Encoding
- Smart H.265+ and H.264 Dual Codecs
- 1080p at 60 fps Maximum Resolution
- True Wide Dynamic Range (120 dB)
- Maximum IR Distance up to 550 m (1804 ft)
- Intelligent Video System (IVS) Analytics with Auto-tracking
- ArcticPro Series Camera - Operational down to –40° C (–40° F)
- IP67 Ingress Protection
- Designed for Extreme Temperature Environments
- Five-year Warranty (for products sold through authorized Dahua Dealers)
Compression
- Error creating thumbnail: Unable to save thumbnail to destination
- Error creating thumbnail: Unable to save thumbnail to destination
- Error creating thumbnail: Unable to save thumbnail to destination
- Error creating thumbnail: Unable to save thumbnail to destination
Intelligent Features
- Error creating thumbnail: Unable to save thumbnail to destination
Abandoned/Missing
- Error creating thumbnail: Unable to save thumbnail to destination
Tripwire
- Error creating thumbnail: Unable to save thumbnail to destination
Intrusion
- Error creating thumbnail: Unable to save thumbnail to destination
Scene Change
- Error creating thumbnail: Unable to save thumbnail to destination
Face Detect
- Error creating thumbnail: Unable to save thumbnail to destination
Heatmap
- Error creating thumbnail: Unable to save thumbnail to destination
Auto Track
Interfaces
|
|
|
|---|---|---|
| WebUI Old | SmartPSS | DSS Express S |
Product Images
|
|
|
|
|
|
|
| Product Box | Box Contents | Box Contents | Box Contents | Wire Harness | Reset Button | SD-Card Slot |
|---|
