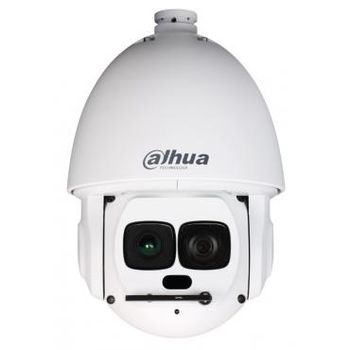

DH-SD6ALA230FN-HNI
| Specifications | Quick Start Guide | Manual | Firmware | PTZ Firmware |
|---|---|---|---|---|
Build Date: 08-23-2017
|
Build Date: 08-21-2017
|
| Series: | Ultra |
| Body: | PTZ |
| Image Sensor: | 1/1.9-in. Exmor CMOS |
| Resolution: | 1944 H x 1092 V |
| Angle of View: | Horizontal: 61.2° to 2.1° |
| Lens Type: | Motorized/ Auto Iris |
| Focal Length: | 6 mm to 180 mm |
| Optical Zoom: | 30x |
| Min. Illumination: | Color: 0.002 Lux at F1.6; B/W: 0.0002 Lux at F1.6; 0 Lux (IR on) |
| Day/Night: | Auto (ICR), Color, B/W |
| Max. IR Range: | Up to 500 m (1640 ft) |
| WDR: | 120dB |
| Video Compression: | Smart H.265+ / MJPEG |
| Audio Compression: | G.711a / G.711Mu (32 kbps)/ PCM (128 kbps) |
| Frame Rate: | 1080p, D1 at 30 fps, 720p at 60 fps |
| Multi-Streaming: | 3 Streams |
| Pan/Tilt Range: | Pan: 0° to 360° Endless Tilt: -20° to 90°, Auto Flip 180° |
| Preset Speed: | 300 Presets Pan: 240° /s Tilt: 200° /s |
| IVS: | Motion, Tripwire, Intrusion, Scene Change, Abandoned/Missing Object, Facial Detection, Heat Map, Auto-tracking |
| ONVIF: | Yes |
| Audio In: | One (1) Channel |
| Audio Out: | One (1) Channel |
| Memory Slot: | Micro SD Slot, maximum 128 GB |
| Alarm In: | Seven (7) Channels |
| Alarm Out: | Two (2) Channels |
| IP Rating: | 67 |
| IK Rating: | - |
| Operating Temp: | –40° C to +70° C (–40° F to +158° F) Less than 90% RH |
| Power: | 24 VAC, 3 A (± 25%), Hi-PoE < 38 W |
| ePoE: | No |
Features
- Powerful 30x optical zoom
- Ultra-low light star light camera
- H.264 & MJPEG Three-stream encoding
- Max 60fps@720P and 30fps@1080P resolution
- Defog, 120dB WDR, EIS, ROI, Day/Night(ICR), DNR (2D&3D), Auto iris, Auto focus, AWB, AGC,BLC
- Auto-tracking and IVS
- Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
- Max 240°/s pan speed, 360° endless pan rotation
- Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
- Built-in 7/2 alarm in/out
- Support intelligent 3D positioning with DH-SD protocol
- Micro SD memory, IP67, Hi-POE
- Laser beam distance up to 500m
CAD Images
Compression
Intelligent Features
Abandoned/Missing
Tripwire
Intrusion
Scene Change
Face Detect
Heatmap
Auto Track
Smart Track
Interfaces
|
|
|
|---|---|---|
| WebUI Old | SmartPSS | DSS Express S |
FOV
Camera Height: 10m
Focal Length: 6mm
Target Horizontal Dist: 82.7m
Camera Height: 10m
Focal Length: 180mm
Target Horizontal Dist: 2500m
Compatible Accessories
Accessories Combo 1
PFB303W
PFA111
Accessories Combo 2
PFB300C
PFA111
Accessories Combo 3
PFA120
PFB303W
PFA111
Accessories Combo 4
PFA140
PFB303W
PFA111
Accessories Combo 5
PFA150
PFB303W
PFA111
Accessories Combo 6
PFA150
PFB300C
PFA111
Accessories Combo 7
PFA150
PFA120
PFB303W
PFA111
Accessories Combo 8
PFA150
PFA140
PFB303W
PFA111
Accessories Combo 9
PFA151
PFB303W
PFA111
Accessories Combo 10
PFA151
PFB300C
PFA111
Accessories Combo 11
PFA151
PFA120
PFB303W
PFA111
Accessories Combo 12
PFA151
PFA140
PFB303W
PFA111
Accessories Combo 13
PFA111
PFB303S
Optional Accessories
PFA112
PFA113
Reset Button
Wiper
