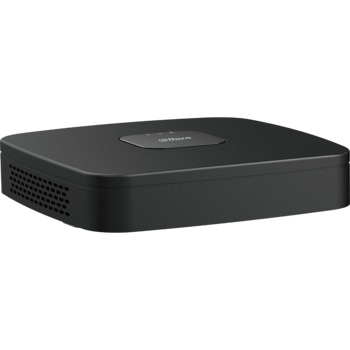

N41C2P
| Specifications | Quick Start Guide | Manual | Firmware |
|---|---|---|---|
| Series: | Lite |
| Compression: | H.265, H.264, MJPEG |
| Channels: | 4 |
| Input Bandwidth: | 200Mbps |
| Record Bandwidth: | 200Mbps |
| Video Output: | One (1) HDMI One (1) VGA |
| HDD: | Two (2) SATA III Ports, Up to 8 TB capacity for each HDD |
| RAID: | - |
| eSATA: | 0 |
| Mini SAS: | 0 |
| Audio In: | One (1) Channel, RCA |
| Audio Out: | One (1) Channel, RCA |
| Alarm In: | 4 |
| Alarm Out: | 2 |
| Network: | 1 Gigabit Port |
| POE: | Four (4) Ports (IEEE802.3af/at) |
| USB: | 1 USB 3.0, 1 USB 2.0 |
| Power: | 48 VDC, 2 A <9W (No HDD) |
| IVS: | Yes (All Channels) |
| Fisheye Dewarp: | No |
| POS: | No |
Features
- H.265 and H.264 Video Compression
- Maximum 200 Mbps Incoming Bandwidth
- Up to 8 MP Resolution for Preview and Playback
- Simultaneous HDMI and VGA Video Output
- Support for IPC and UPnP Protocols
- Four (4) PoE Ports
- Support for Automatic Network Replenishment (ANR) Technology
Compression
Intelligent Features
Abandoned/Missing
Tripwire
Intrusion
Scene Change
SMD
Face Detect
People Counting
Heatmap
Interfaces
|
|
|
|
|---|---|---|---|
| SystemUI New | WebUI New | SmartPSS | DSS Express S |
