DH-IPC-HFW44A1EN

DH-IPC-HFW44A1EN
Specifications Quick Start Guide Manual Firmware

Build Date: 9-7-2021
DH-IPC-HFW44A1EN HFW44A1EN.jpg
Series: Pro
Body: Bullet
Image Sensor: 1/3" CMOS
Resolution: 4MP, 2688(H) x 1520(V)
Angle of View: 3.6mm - Horizontal: 84°
6mm - Horizontal: 56°
Lens Type: Fixed
Focal Length: 2.8 mm or 6mm
Min. Illumination: Color: 0.01Lux@F2.0;
B/W: 0.001Lux@F2.0;
0 Lux (IR On)
Day/Night: Auto (ICR), Color, B/W
Max. IR Range: Up to 40m (130ft)
WDR: 120dB
Video Compression: Smart H.264+ / MJPEG
Audio Compression: -
Frame Rate: 4MP (1~20fps), 3MP (1 ~ 30fps)
Multi-Streaming: 3 Streams
IVS: Motion, Tripwire, Intrusion,
Scene Change, Abandoned/Missing Object,
Facial Detection
ONVIF: Yes
Audio In: 0
Audio Out: 0
Memory Slot: -
Alarm In: 0
Alarm Out: 0
IP Rating: 67
IK Rating: -
Operating Temp: -30°C to +60°C (-22°F to +140°F)
Less than 90% RH
Power: 12V DC ±25%, PoE (af Class 0)
< 6 W
ePoE: No

EOL

  • Currently EOL

Suggested Replacement

  • N44BB33

Features

  • 1/3” 4Megapixel progressive scan CMOS
  • Support H.264&MJPEG dual codec
  • 20fps@4M(2688 x 1520),25/30fps@3M(2304 x 1296)
  • Smart Detection supported
  • WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • 3.6mm fixed lens (6mm optional)
  • Max. IR LEDs Length 40m
  • IP67, PoE

CAD Images

  • E Fixed Bullet copy 1.JPG

Compression

Intelligent Features

  • Abandoned/Missing

  • Tripwire

  • Intrusion

  • Scene Change

  • Face Detect

Interfaces

WebUI Old SmartPSS DSS Express S
WebUI Old SmartPSS DSS Express S

FOV

  • Camera Height: 10m
    Focal Length: 3.6mm
    Target Horizontal Dist: 66.2m

  • Camera Height: 10m
    Focal Length: 6mm
    Target Horizontal Dist: 111.2m

Firmware

Firmware Update Instructions

Compatible Accessories

Compatible Accessories
Accessories Combo 1 PFA121PFA121
Accessories Combo 2 PFA121PFA121 PFA150PFA150
Accessories Combo 3 PFA121PFA121 PFA152PFA152
Accessories Combo 4 PFA121PFA121 PFA151PFA151

Product Diagram

CAD IP Pro Compact Bullet DH-IPC-HFW42A1EN(-I).jpg

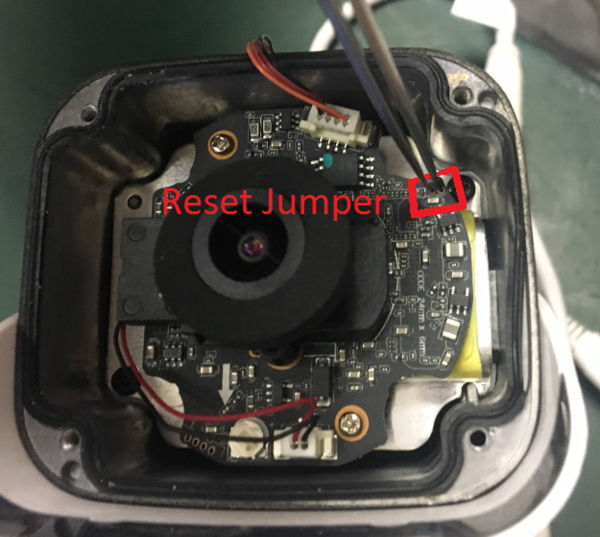

Reset Button


Specifications
