USA/HDCVI/DVR/Ultra/X58A3S

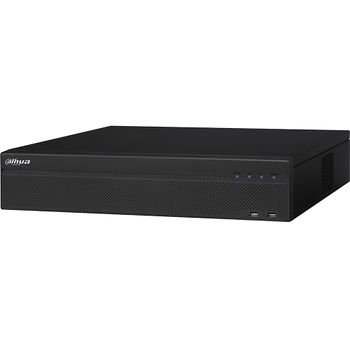

X58A3S
| Specifications | Quick Start Guide | Manual | Firmware |
|---|---|---|---|
Build Date: 11-01-2019
|
| Series: | Ultra |
| Compatible Video: | HDCVI/AHD/CVBS/TVI (Auto-detect) |
| HD-CVI/Analog Channels: | 16 |
| IP Channels: | 16 + 48 |
| Video Compression: | Smart H.264+, H.264 (Smart H.265+ IP Camera Compatibility) |
| HD-CVI/Analog Recording Resolutions: |
1st and 9th channels: • 4K at 15 fps or 4 MP at 15 fps Other Channels: • 4 MP at 15 fps; • 1080p, 720p, 960H, D1, HD1, BCIF, CIF, QCIF at 30 fps |
| IP Recording Resolutions: | Up to 12 MP |
| Input Bandwidth: | 256 Mbps (384 Mbps Forwarding) |
| Video Output: | Two (2) HDMI ports (HDMI 1 output up to 4K, 2K) One (1) VGA port One (1) TV Output port, BNC (spot output) |
| HDD: | 8 SATA Ports, up to 8 TB capacity for each disk |
| eSATA: | 1 |
| Audio In: | 16 BNC |
| Audio Out: | 1 BNC |
| Alarm In: | 16 |
| Alarm Out: | 6 |
| Network: | 2 Gigabit Ports |
| USB: | Two (2) USB 2.0 ports Two (2) USB 3.0 ports |
| Power: | 100 to 240 VAC, 50/60 Hz <40W (No HDD) |
| IVS: | Yes (6 Channels) |
| POS: | No |
| Spot Out/ Video Matrix: | Yes, TV Interface (HDMI-2 sub-port) |
EOL: End of Life
EOL Date: 7/14/2020
Suggested Replacement
Features
- Embedded Intel Multi-core Processor
- Dual-stream Video Recording
- Smart H.264+ Video Compression (Smart H.265+ IP Camera Compatibility)
- Auto-detect and Auto-configuration of HDCVI, AHD, CVBS, TVI, IP cameras
- 16+48 IP Camera Channels, each channel up to 12 MP
- Maximum 256 Mbps Incoming Bandwidth, 384 Mbps Forwarding Bandwidth
- Smart Search and Intelligent Video System
- Supports HDCVI/CVBS Loop Out
Images
Front Panel
Back Panel
Box Contents
Compression
- Error creating thumbnail: Unable to save thumbnail to destination
- Error creating thumbnail: Unable to save thumbnail to destination
- Error creating thumbnail: Unable to save thumbnail to destination
- Error creating thumbnail: Unable to save thumbnail to destination
Intelligent Features
- Error creating thumbnail: Unable to save thumbnail to destination
Abandoned/Missing
- Error creating thumbnail: Unable to save thumbnail to destination
Tripwire
- Error creating thumbnail: Unable to save thumbnail to destination
Intrusion
- Error creating thumbnail: Unable to save thumbnail to destination
Scene Change
- Error creating thumbnail: Unable to save thumbnail to destination
Face Detect
- Error creating thumbnail: Unable to save thumbnail to destination
People Counting
Interfaces
|
|
|
|
|---|---|---|---|
| SystemUI Old | WebUI Old | SmartPSS | DSS Express S |
