DH-IPC-HDBW5831EN-Z5E
DH-IPC-HDBW5831EN-Z5E
Features
- 1/2.5-in. 8 MP Progressive-scan STARVIS™ CMOS Sensor
- Triple-stream Encoding
- Smart H.265+ and Smart H.264+ Dual Codec
- 8 MP (3840 x 2160) at 15 fps or 3 MP (2304 x 1296) at 30 fps
- 7 mm to 35 mm Motorized Optical Zoom Lens
- Enhanced Power and Data Transmission Distances (ePoE)
- True Wide Dynamic Range (120 dB) and True Day/Night (ICR)
- Maximum IR LED Distance 100 m (328 ft)
- IP67 Ingress Protection and IK10 Vandal Resistance
- Intelligent Video System
- Five-year Warranty (for products sold through an authorized Dahua Dealer)
Compression
Reset Button and SD Card

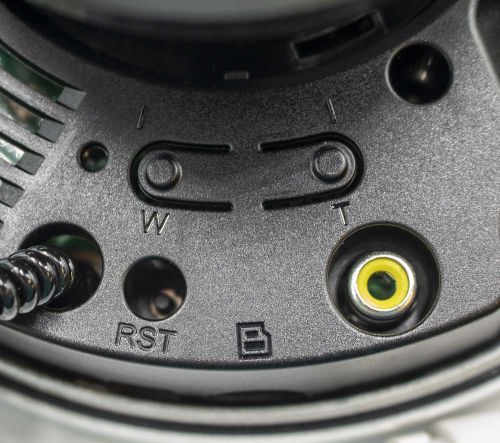

Reset Button

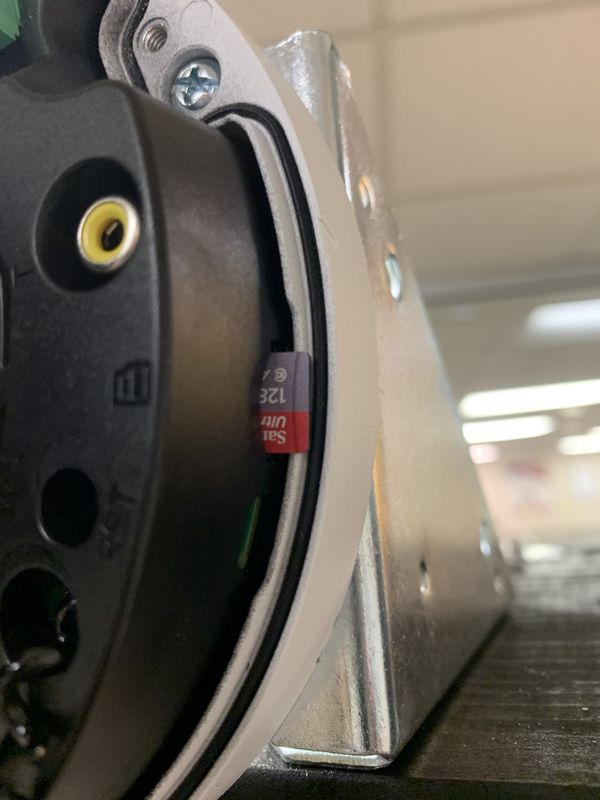

SD Card
Video Instructions
Zoom Feature
Firmware
You can update your device with the IP Firmware Toolkit.
Firmware Update Instructions
- Instructions for Firmware Update via USB
- Instructions for Firmware Update via ConfigTool
- Instructions for Firmware Update via Internet Explorer
Specification
| Camera | |
|---|---|
| Image Sensor | 1/2.5-in. 8 MP Progressive-scan STARVIS™ CMO |
| Effective Pixels | 3840(H) x 2160(V) |
| RAM/ROM | 512 MB/32 MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto, Manual, 1/3 s to 1/100,000 s |
| Minimum Illumination | Color: Color: 0.05 lux at F1.4 (1/3 s, 30 IRE)
Color: 0.2 lux at F1.4 (1/30 s, 30 IRE) 0 lux at F1.4 (IR on) |
| S/N Ratio | More than 50 dB |
| IR Distance | Distance up to 100 m (328.08 ft) |
| IR On/Off Control | Auto, Manual |
| IR LEDs | Three (3) |
| Lens | |
| Lens Type | Motorized, Auto Iris (HALL) |
| Mount Type | Board-in |
| Focal Length | 7 mm to 35 mm |
| Max Aperture | F1.4 |
| Angle of View | Horizontal: 38° to 14°
Vertical: 22° to 8° |
| Optical Zoom | 5x |
| Focus Control | Motorized |
| Close Focus Distance | 0.60 m (1.97 ft) |
| Installation Angle | |
| Range | Pan: 0° to 335°
Tilt: 0° to 65° Rotation: 0° to 355° |
| DORI Distances² | ||||
|---|---|---|---|---|
| Detect | Observe | Recognize | Identify | |
| Wide | 234 m
(767 ft) |
94 m
(308 ft) |
47 m
(154 ft) |
23 m
(75 ft) |
| Tele | 765 m
(2509 ft) |
306 m
(1004 ft) |
153 m
(504 ft) |
76 m
(251 ft) |
| Video | ||
|---|---|---|
| Compression | Smart H.265+, H.265, Smart H.264+, H.264 | |
| Streaming Capability | Three (3) Streams | |
| Resolution | 8 MP (3840 x 2160),
6 MP (3072 x 2048), 5 MP (3072 x 1728), 5 MP (2592 x 1944), 4 MP (2688 x 1520), 3 MP (2304 x 1296), 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240) | |
| Frame Rate | Main Stream: 8 MP at 15 fps or 3 MP at 30 fps
Sub Stream 1: D1 at 30 fps Sub Stream 2: 720p at 30 fps | |
| Bit Rate Control | CBR/VBR | |
| Bit Rate | H.264: 24 Kbps to 10240 Kbps
H.265: 14 Kbps to 9984 Kbps | |
| Day/Night | Auto (ICR), Color, B/W | |
| BLC Mode | BLC, HLC, WDR | |
| White Balance | Auto, Natural, Street Lamp, Outdoor, Manual | |
| Gain Control | Auto, Manual | |
| Noise Reduction | 3D DNR | |
| Motion Detection Off, | On (4 Zones, Rectangular) | |
| Region of Interest | Off, On (4 Zones) | |
| Smart IR | Support | |
| Digital Zoom | 16x | |
| Flip | 0°, 90°, 180°, 270° | |
| Mirror | Off, On | |
| Privacy Masking | Off, On (4 Areas, Rectangular) | |
| Audio | |
|---|---|
| Compression | G.711a, G.711Mu, AAC, G.726 |
| Certifications | |
| Safety | UL60950-1
EN 60950:2000 |
| Electromagnetic Compatibility (EMC) | FCC CFR 47 Part 15 Subpart B |
| Interface | |
| Video | Output: One (1), for adjustment only |
| Audio | Input: One (1) Channel
Output: One (1) Channel |
| Alarm | Input: One (1) Channel (5 mA, 5 VDC)
Output: One (1) Channel (300 mA, 12 VDC) |
| Electrical | |
| Power Supply | 12 VDC, 2 A; 24 VAC, 0.8 A; or
PoE+ (IEEE 802.3at, Class 4) |
| Power Consumption | < 15 W |
| Environmental | |
| Operating Conditions | –30° C to +60° C (–22° F to +140° F)
Less than 95% RH Initiate startup above –30° C (–22° F) |
| Storage Conditions | –30° C to +60° C (–22° F to +140° F),
Less than 90% RH |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Construction | |
| Casing | Metal |
| Dimensions | ø159.10 mm x 117.90 mm
(ø6.26 in. x 4.64 in.) |
| Net Weight | 0.95 kg (2.09 lbs) |
| Gross Weight | 1.20 kg (2.65 lbs) |
