USA/HDCVI/DVR/Ultra/X58A5S

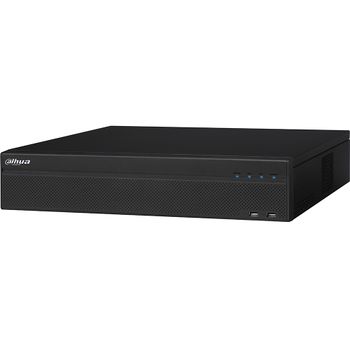

X58A5S
| Specifications | Quick Start Guide | Manual | Firmware |
|---|---|---|---|
Build Date: 11-24-2022
|
| Series: | Pro |
| Compatible Video: | HDCVI/AHD/TVI/CVBS (Auto-detect) |
| HD-CVI/Analog Channels: | 32 |
| IP Channels: | 32 |
| Video Compression: | H.264+ / H.264 |
| HD-CVI/Analog Recording Resolutions: |
Channels 1 and 2: • 5 M-N (1296 x 1944) at 20 fps Channels 3 to 32: • 4 M-N (1280 x 1440) at 30 fps |
| IP Recording Resolutions: | Up to 8 MP |
| Input Bandwidth: | 128 Mbps |
| Video Output: | Two (2) HDMI One (1) VGA One (1) BNC |
| HDD: | Eight (8) SATA Ports, up to 10 TB capacity for each disk |
| eSATA: | 1 |
| Audio In: | 16 BNC |
| Audio Out: | 1 BNC |
| Alarm In: | 16 |
| Alarm Out: | 6 |
| Network: | 2 Gigabit Ports |
| USB: | Two (2) USB 2.0 Ports and Two (2) USB 3.0 Ports |
| Power: | 100 VAC to 240 VAC, 50/60 Hz <35W (No HDD) |
| IVS: | Yes (16 Analog Channels, when IP Channels are Disabled) |
| POS: | No |
| Spot Out/ Video Matrix: | Yes, HDMI 2 |
Features
- Embedded Intel Multi-core Processor
- Dual-stream Video Recording
- Smart H.264+ Video Compression (Smart H.265+ IP Camera Compatibility)
- 5 M-N (1296 x 1944) at 20 fps Maximum Recording Resolution
- 32 HDCVI, AHD, TVI, CVBS or IP Channels
- Up to 8 MP per IP Channel
- 128 Mbps Incoming Bandwidth
- Built-in Smart Search
- Spot Output on HDMI 2 Output
- Intelligent Video System
- Eight (8) SATA HDD Ports, up to 10 TB per Hard Disk Drive
- Five-year Warranty (for products sold through an authorized Dahua dealer)
Compression
Intelligent Features
Abandoned/Missing
Tripwire
Intrusion
Face Detect
Interfaces
|
|
|
|
|---|---|---|---|
| SystemUI New | WebUI New | SmartPSS | DSS Express S |
