Accessories/Switches/PFS5424 24T




  • Based on a new generation BROADCOM high performance switch IC
  • Full gigabit fiber port and RJ 45 port
  • No fan design, support natural thermal dissipation
  • Support powerful ACL strategy function
  • Support QINQ, satisfy the requirement of VLAN flexible deployment
  • The product owns SNMP,WEB,TELENET, CLI and other abundant management modes
  • Meanwhile it has QOS,RSETMSTP,GMP and other functions
  • Prevent APR,RADIUS certification, 802.1X certification and other functions, make network safer

Compatible Body Type=

  • X

Compatible IP Cameras

  • X

Compatible HD-CVI Cameras

  • X

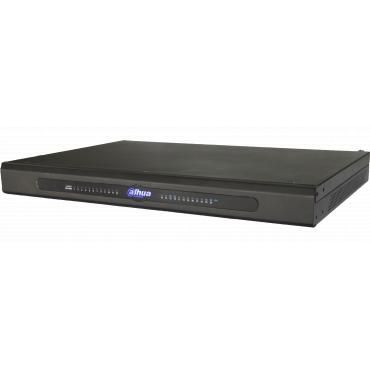

Model DH-PFS5424-24T
Product Modality & Performance
RJ45 port 24*10/100/1000Mbps self-adaptive RJ45 port
Fiber port Four 1000Mbps SFP fiber ports (COMBO)
Backplane bandwidth 128Gbps
Packet forward rate 35.7Mpps
MAC entry 8K
VLAN entry 4K
Technical Specifications
STP IEEE802.1d(STP);IEEE802.1w(RSTP);IEEE802.1s(MSTP)
QoS Each port has four queues, support Qos with port priority based on 4802.1p, DiffServ and MAC, support WRR/SP and other scheduling modes
ACL Support standard IP, extended IP, extended MAC and ARP ACL, support IP ACL, MAC ACL, IP-MAC ACL, ARP ACL, support based on source/destination IP address, source/destination MAC address, IP protocol type, TCP/UDP port number, IP Precendence, ToS and so on to filter data.
Enhance security feature Support access control of application flow with complicated features (max 80 bytes). Monitor attack behavior and take measures to prevent attack, illegal multicast source and controlled multicast.
Enhance ARP security function Support prevent ARP cheating and scanning
Trunk 8 groups of Trunk, able to support 8 port aggregation
Multicast IGMP Snooping, static multicast
CPU protection Support
Bandwidth management Support rate limit of port input and output,basic rate:64Kbps,step:64Kbps
MAC operation Support port/MAC auto binding, support MAC filtering
VLAN type Based on port/802.1Q protocol, support GVRP, support PVLAN, support QinQ technology
Flow control Support HOL prevent first packet blocking, half-duplex backpressure, full duplex IEEE802.3x
ARP Support dynamic ARP, static ARP, ARP binding and so on
DHCP Support Client/BOOTP /Relay/Server
Port aggregation Support LACP, support 802.3ad, support load balancing
IEEE802.1x Support 802.1x which is based on port and MAC address, realize flexible binding for user account, password, IP, MAC, VLAN, port and switch, improve security.
Certification Support RADIUS
Port mirroring Support
Broadcast storm control Support, able to set allow broadcast, multicast and rate limit of DLF, the restrain threshold of broadcast data packet is 0~10Mbps
Network management
Management interface CLI(Console/Telnet), SNMP, WEB, Telnet,SSH
System log Support
Configuration management classification Support
RMON 1,2,3,9 four groups
MIB port Provided
Security IP Support secure network management function
SNTP Support
BOOTP Support
Product technical protocol
Layer two protocol specifications IEEE802.1s,IEEE802.3,IEEE802.3u,IEEE802.3x,IEEE802.3z,IEEE802..3ab,IEEE802.3ad,IEEE802.1p,IEEE802.1q,RFC 783RFC 906,RFC 951,RFC 1350RFC 791RFC 792RFC 826RFC 854~RFC 859RFC 1157RFC 1213RFC 1493RFC 1757RFC 1112
Electrical index
Lightning protection index AC power port:difference mode +/-2kV,common mode +/-4kV;service port: common mode +/-6kV
Physical dimension (width length depth) 440mm×300mm×44mm
Fanless design Support natural thermal dissipation
Relative humidity 10% - 90% no condensation
Operating temperature -25℃ -55℃
Power AC100V - 240V, 50-60Hz
Power consumption <25W
