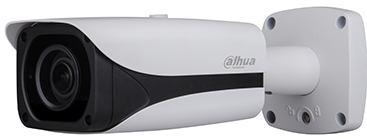

N84BB14
.png)
Features
- 1/2.5-in. 8 MP Progressive Scan CMOS
- Smart H.265+ and H.264 Triple-stream Encoding
- 15 fps @ 4K/8 MP (3840 x 2160) and 30 fps @ 3 MP (2304 x 1296)
- Smart Detection Supported
- Digital WDR and Day/Night IR Cut Filter
- 4 mm Fixed Lens
- Max. IR LED Length 40 m (131.23)
- Micro SD Memory, IP67, PoE
Compression
FOV
Camera Height:10m
Focal Length: 4mm
Target Horizontal Dist: 63.1m
Firmware
Firmware Update Instructions
- Instructions for Firmware Update via USB
- Instructions for Firmware Update via ConfigTool
- Instructions for Firmware Update via Internet Explorer
Firmware Update Download
Build Date: 07-07-2021
Intelligent Features
Tripwire
Intrusion
Abandoned/Missing
Compatible Accessories
| Accessories Combo 1 |  PFA121
| |
| Accessories Combo 2 | PFA121
|
 PFA150
|
| Accessories Combo 3 | PFA121
|
 PFA152
|
| Accessories Combo 4 | PFA121
|
 PFA151
|
Reset Button
Specifications
| Camera | ||
| Image Sensor | 1/2.5-in. 8 MP Progressive Scan CMOS | |
| Effective Pixels | 3840(H) x 2160(V) | |
| RAM/ROM | 512 MB / 32 MB | |
| Scanning System | Progressive | |
| Minimum Illumination | Color: 0.05 lux at F1.6 | |
| B/W: 0 lux at F1.6 (IR on) | ||
| S/N Ratio | More than 50 dB | |
| IR Distance | Distance up to 40 m (131.23 ft) | |
| IR On/Off Control | Auto / Manual | |
| IR LEDs | Two (2) | |
| Lens | ||
| Lens Type | Fixed | |
| Mount Type | Board-in | |
| Focal Length | 4 mm | |
| Max. Aperture | F1.6 | |
| Angle of View | Horizontal: 87° | |
| Vertical: 48° | ||
| Focus Control | Fixed | |
| Pan/ Tilt/ Rotation | ||
| Range | Pan: 0˚ to 360˚ | |
| Tilt: 0˚ to 90˚ | ||
| Rotation: 0˚ to 360˚ | ||
| Intelligence | ||
| IVS | Tripwire, Intrusion, Abandoned/Missing Object | |
| Advanced Intelligent Functions | Face Detection | |
| Video | ||
| Compression | Smart H.265+ / H.265 / Smart H.264+ / H.264 | |
| Streaming Capability | Three (3) Streams | |
| Resolution | 4K/8 MP (3840 x 2160), 6 MP (3072 x 2048), | |
| 5 MP (2560 x 1920), 3 MP (2048 x 1536), | ||
| 3 MP (2304 x 1296), 1080p (1920 x 1080), | ||
| 1.3 MP (1280 x 960), 720p (1280 x 720), | ||
| D1 (704 x 480), VGA (640 x 480), CIF (352 x 240) | ||
| Frame Rate | Main Stream: 4K/8 MP (1 to 15 fps) or | |
| 3 MP (1 to 30 fps) | ||
| Sub Stream 1 : D1 (1 to 30 fps) | ||
| Sub Stream 2: 720p (1 to 30 fps) | ||
| Bit Rate Control | CBR/VBR | |
| Bit Rate | H.264: 24 K to 10240 Kbps | |
| H.265: 14 K to 9984 Kbps | ||
| Day/Night | Auto (ICR) / Color / B/W | |
| BLC Mode | BLC / HLC / DWDR | |
| White Balance | Auto / Natural / Street Lamp / Outdoor / Manual | |
| Gain Control | Auto / Manual | |
| Noise Reduction | 3D DNR | |
| Motion Detection | Off / On (4 Zone, Rectangle) | |
| Region of Interest | Off / On (4 Zone) | |
| Smart IR | Support | |
| Digital Zoom | 16x | |
| Flip | 0° / 90° / 180° / 270° | |
| Mirror | Off / On | |
| Privacy Masking | Off / On (4 Area, Rectangle) | |
| Network | ||
| Ethernet | RJ-45 (10/100 Base-T) | |
| Protocol | HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; | |
| FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; | ||
| UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; | ||
| IGMP; SNMP | ||
| Interoperability | ONVIF, PSIA, CGI | |
| Streaming Method | Unicast / Multicast | |
| Max. User Access | 10 Users /20 Users | |
| Edge Storage | NAS | |
| Local PC for Instant Recording | ||
| MicroSD Card, maximum 128 GB | ||
| Web Viewer | IE, Safari | |
| Management Software | Smart PSS, DSS | |
| Mobile Operating System | IOS, Android | |
| Certifications | ||
| Safety | UL60950-1 | |
| Electromagnetic Compatibility | FCC Part 15 Subpart B | |
| Electrical | ||
| Power Supply | DC12V, PoE (802.3af, Class 0) | |
| Power Consumption | < 7 W | |
| Operating Conditions | -30° C to +60° C (-22° F to +140° F), | |
| Less than 95% RH | ||
| Storage Conditions | -30° C to +60° C (-22° F to +140° F), | |
| Less than 95% RH | ||
| Ingress Protection | IP67 | |
| Construction | ||
| Casing | Metal | |
| Dimensions | 180.0 mm x 70.0 mm x 70.0 mm | |
| (7.09 in. x 2.76 in. x 2.76 in.) | ||
| Net Weight | 0.41 kg (0.91 lb) | |
| Gross Weight | 0.53 kg (1.17 lb) | |
