USA/HDCVI/DVR/Lite/DHI HCVR51A16HE S3

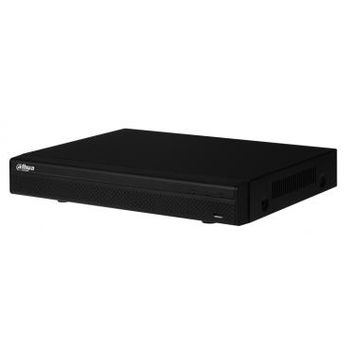

DHI-HCVR51A16HE-S3
| Specifications | Quick Start Guide | Manual | Firmware |
|---|---|---|---|
Build Date: 06-01-2018
|
| Series: | Lite |
| Compatible Video: | HDCVI/CVBS (Auto-detect) |
| HD-CVI/Analog Channels: | 16 |
| IP Channels: | 24 |
| Video Compression: | H.264+ / H.264 |
| HD-CVI/Analog Recording Resolutions: |
720p, 960H |
| IP Recording Resolutions: | 5 MP, 4 MP, 3 MP, 1080p, 1080N, 720p |
| Input Bandwidth: | 96Mbps |
| Video Output: | 1 HDMI, 1 VGA |
| HDD: | 1 HDD, 6 TB |
| eSATA: | 0 |
| Audio In: | 4 BNC, 1 RCA |
| Audio Out: | 1 BNC, 1 RCA |
| Alarm In: | 16 |
| Alarm Out: | 3 |
| Network: | 1 Gigabit Port |
| USB: | 1 USB 3.0 Port, 1 USB 2.0 Port |
| Power: | 12 VDC, 2 A, 50/60 Hz <10W (No HDD) |
| IVS: | Yes (1 IP Channel) |
| POS: | No |
| Spot Out/ Video Matrix: | Yes |
System Specific Features
- The Face Detect feature can only be enabled on channel 1 with a HDCVI camera, no other channels can use this feature.
Features
- Support HDCVI/Analog/IP Video input
- H.264 dual-stream video compression
- HCVR5104/5108/5116HE-S3: All channel 1080N/720P realtime or 1080P non-realtime recording
- HDMI/VGA simultaneous video output
- 4/8/16 channel synchronous realtime playback, GRID interface & smart search
- Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek and etc.
- ONVIF Version 2.4 conformance
- Support 1 SATA HDD up to 6TB, 2 USB2.0(16CH 1 USB3.0)
- 3D intelligent positioning with Dahua PTZ dome camera
- Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS)&Smart Phone(DMSS)
Compression
- Error creating thumbnail: Unable to save thumbnail to destination
- Error creating thumbnail: Unable to save thumbnail to destination
Intelligent Features
- Error creating thumbnail: Unable to save thumbnail to destination
Abandoned/Missing
- Error creating thumbnail: Unable to save thumbnail to destination
Tripwire
- Error creating thumbnail: Unable to save thumbnail to destination
Intrusion
- Error creating thumbnail: Unable to save thumbnail to destination
Scene Change
Interfaces
|
|
|
|
|---|---|---|---|
| SystemUI Old | WebUI Old | SmartPSS | DSS Express S |
Front Panel
Error creating thumbnail: Unable to save thumbnail to destination
Back Panel
HCVR5216A/HCVR7208A Series
