USA/HDCVI/DVR/Ultra/X24A5L
X24A5L
| Specifications | Quick Start Guide | Manual | Firmware |
|---|---|---|---|
Build Date: 06-01-2018
|
| Series: | Pro |
| Compatible Video: | HDCVI/AHD/CVBS/TVI (Auto-detect) |
| HD-CVI/Analog Channels: | 32 |
| IP Channels: | 32 |
| Video Compression: | Smart H.264+, H.264, MJPEG |
| HD-CVI/Analog Recording Resolutions: |
1080p at 15 fps 1080N, 720p, 960H, D1, HD1, BCIF, CIF, QCIF at 30 fps |
| IP Recording Resolutions: | Up to 5 MP |
| Input Bandwidth: | 128 Mbps |
| Video Output: | Two (2) HDMI ports One (1) VGA port One (1) 1 TV port |
| HDD: | 4 SATA Ports, up to 8 TB capacity for each disk |
| eSATA: | 1 |
| Audio In: | 4 BNC |
| Audio Out: | 1 BNC |
| Alarm In: | 16 |
| Alarm Out: | 6 |
| Network: | 1 Gigabit Port |
| USB: | One (1) USB 2.0 Port, Two (2) USB 3.0 Ports |
| Power: | 100 to 240 VAC, 50/60 Hz <30W (No HDD) |
| IVS: | Yes (1 Analog Channel) |
| POS: | No |
| Spot Out/ Video Matrix: | Yes, HDMI-2 Interface |
Features
- Embedded Processor
- Dual-stream Recording
- Smart H.264+ Video Compression
- Auto-detect and auto-configuration of HDCVI, AHD, CVBS, TVI, IP Cameras
- Maximum 32 Camera Channels, HDCVI, AHD, CVBS, TVI, or IP Sources
- Maximum 128 Mbps Incoming Bandwidth
- Smart Search and Intelligent Video System (IVS)
Compression
Intelligent Features
Abandoned/Missing
Tripwire
Intrusion
Scene Change
Face Detection
Interfaces
|
|
|
|
|---|---|---|---|
| SystemUI Old | WebUI Old | SmartPSS | DSS Express S |

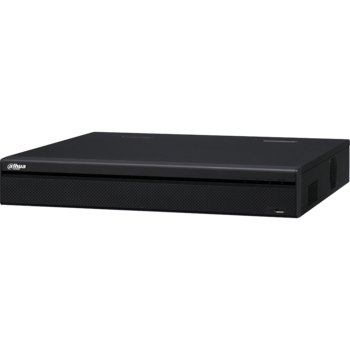

Product Images
|
|
|
| Box Contents | Front Panel | Back Panel |
|---|
