• Bare stranded copper conductor
  • 305m UTP CAT5E

Compatible Body Type

  • X

Compatible IP Cameras

  • X

Compatible HD-CVI Cameras

  • X

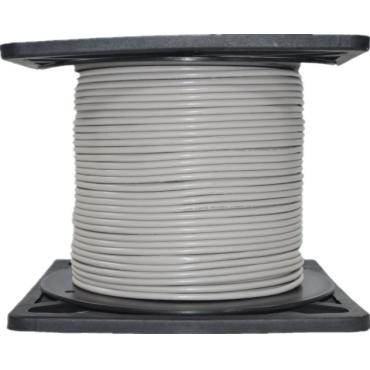

Model  PFM920
Conductor Material  Bare copper(BC)
Composition  1/0.5
Wire gauge  24AWG*4P
Insulation Material  HDPE
Min. average thickness  0.2mm
Diameter  0.9+/-0.05mm
Color(4 Pairs)  Orange, white/orange; green, white/green; blue, white/blue; brown, white/brown
Lay of twisted conductors 140mm
Jacket Material  PVC(65P)
Min. average thickness  0.65mm
Diameter  5.2+/-0.1mm
Color  Gray
Length  305m
Max. DC resistance of single conductor  9.5Ω/100m
Max. unblance rate of line pairs' direct current resistance  2.5%
Min. insulation resistance  5000MΩ•Km
Max. mutual capacitance  5.6NF/100m
Max. attenuation  22(dB/100m, 100MHz)
General Rated voltage  300V
Bandwidth  100MHz
Carried standard  TIA/EIA-568B
Working temperature   </=70℃
Packaging length  305m trolley case packaging
Weight(with packaging)  11.5Kg
Packaging dimension  335*205*350mm
