Compression Example

Examples

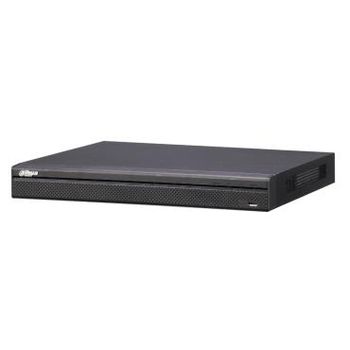

DHI-NVR52A08-8P-4KS2 NVR52A08.jpg
Series: Pro
Compression: H.265/H.264/MJPEG/MPEG4
Channels: 8
Input Bandwidth: 320Mbps
Record Bandwidth: 320Mbps
Video Output: 1 HDMI (up to 3840 x 2160), 1 VGA
HDD: 2 SATA III Ports,
Up to 10 TB per HDD
RAID: -
eSATA: 1
Mini SAS: 0
Audio In: One (1) Channel, RCA
Audio Out: One (1) Channel, RCA
Alarm In: 4
Alarm Out: 2
Network: 1 Gigabit Port
POE: 8 ports (IEEE802.3at/af)
USB: 1 USB 3.0, 1 USB 2.0
Power: 100 to 240 VAC, 50/60 Hz
<15.2W (No HDD)
IVS: Yes (All Channels)
Fisheye Dewarp: Yes
POS: Yes

Compression--NVR, XVR/DVR, IPC, PTZ IPC

Intelligent Features--NVR, DVR, IPC, PTZ IPC

NOTE:IVS features and capabilities are determined by a combination of both your IP Camera and Recorder, and will vary based on which devices you are using.

  • Tripwire

  • Intrusion

  • Abandoned
    & Missing Object

  • Scene Change

  • Auto Track

  • Smart Track

  • Thermal IVS

  • Face Detection

  • People Counting

  • Perimeter Protection

  • Heatmap

  • Traffic Enforcement

  • SMD

Interfaces

SystemUI Old WebUI Old SystemUI New WebUI New SmartPSS DSS Express S
SystemUI Old WebUI Old SystemUI New WebUI New SmartPSS DSS Express S

Product Images

Product Box Box Contents Wire Harness
Product Box Box Contents Wire Harness

Specifications
