Control4

Overview

Using this driver allows a Control4 dealer to add an icon in the watch menu. This will enable the Control4 System to use the Monitor-Out/HDMI/VGA connector to integrate Dahua devices.

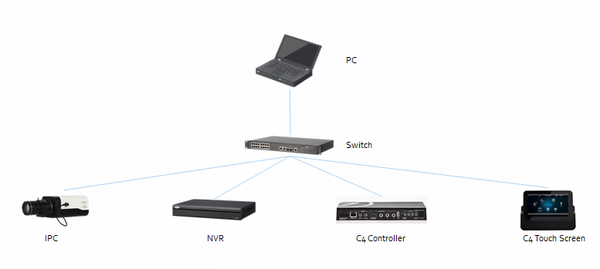

Control4 infograph.png

Instructions

Prerequisites

Driver Features

  • Allows NVR Icon on Watch Menu, and Connection paths for HDMI and VGA into a Control4 video system
  • Event Connection for Triggers FROM NVR (using either, connection binding or Composer Event)
  • NUMBER buttons select that channel (example: Button 6 = Camera 6 on the TV)
  • Setup RED, GREEN, YELLOW, and BLUE buttons to trigger different views on TV
  • Uses Control4’s cable Proxy
  • Connection paths for camera proxy interface

Working

  • Video Intercom-Main Stream Only, Must be connected to Control4 Compatible Recorder
  • ONVIF Compatible 3rd Party Camera added to Control 4 Compatible Dahua Recorder
  • H.264 + Smart Codec
  • MJPEG
  • Main Stream from Control4 Compatible Dahua IP Camera or Recorder
  • Sub-Stream from Control4 Compatible Dahua IP Camera or Recorder

Not Working

  • H.265
  • H.265 + Smart Codec
  • Video Feeds with bit rate higher than 1Mbps
  • PTZ Controls for Control4 Compatible Dahua PTZ
  • PTZ Controls on 3rd Party PTZ

Driver List

Dahua Firmware to Enable Control4 Integration

XVR Firmware

Model Firmware
  • X72A2A
  • X51A3E
  • X52A3A
  • X52A3N
  • X51A1E
  • X51A2E
  • X71A1H
  • X72A3A
  • X54A5L
  • X58A5S

Model Firmware
  • DHI-NVR52A08-8P-4KS2
  • DHI-NVR52A16-16P-4KS2
  • DHI-NVR54A16-16P-4KS2
  • DHI-NVR58A16-16P-4KS2
  • DHI-NVR58A32-4KS2
  • N52A4P
  • N54A4P
  • N52B2P
  • N52B3P
  • N52B5P
  • N54B3P
  • N42B1P
  • N42B2P
  • N42B3P
  • N41B2P
  • N41B1P

Model
  • N52BF3Z
  • N52BM3Z
  • N51BD22
  • N51BD23
  • N51BL22
  • N51BL23
  • N51BI22
  • N51BI23
  • N41BD22
  • N41BK22
  • N41BD12-W
  • N41BL12-W
  • N45BB5Z
  • N45CB5Z
  • N25BL5Z
  • N25CL5Z
  • N45BL5Z
  • N45CL5Z
  • N25BL5Z
  • N25CL5Z
  • N45BA5
  • N25BA5
  • N85CM5Z
  • N85CL5Z
  • N85CB5Z
  • N65CB5Z
  • N65CL5Z
  • N45CL5Z-B
  • N24BL52
  • N24CL52
  • N24BL53
  • N24CL53
  • N24BL56
  • N24CL56
  • N84BG44
  • N84CG54
  • N44BG52
  • N44CG52
  • N44BG53
  • N44CG53
  • N44BG56
  • N24BG52
  • N24CG52
  • N24BG53
  • N24CG53
  • N24BG56
  • N44BN52
  • N44BN53
  • N44BN56
  • N24BN52
  • N24BN53
  • N24BN56
  • N44BE53
  • N24BE53
  • N84CL52
  • N84CG52
  • N64CB32
  • N64CB33
  • N64CL52
  • N64CL53
  • N64CG52
  • N64CG53
  • N44BB33-B
  • N44BL52-B
  • N44CG52-B
  • N55BS5
  • DH-IPC-HFW4239TN-ASE
  • DH-IPC-HDBW4239RN-ASE
