License Plate
Dahua’s License Plate Recognition cameras automatically capture vehicle license plate images, and recognize license plate numbers and letters
During playback, an operator can perform a license plate search by time and date to view thumbnail images of all plates captured during the specified time period, or they can enter a license plate number to search for vehicles recorded with that plate.
Contents
Instructions
| Physical Setup & Mounting |
|---|
| Learn how to physically install the camera and recommendations for best mounting practices > LPR Camera Physical Setup & Mounting |
| Quick Configuration |
|---|
| Follow the camera's built-in Guide to setup and configure License Plate Capture > LPR Camera Quick Configuration Guide |
DSS
Troubleshooting
- ITC237 Overexposure / Image Issues
- License Plate Recognition Issues (Not Capturing, Low recognition Rate, problems identifying plate)
- Insufficient Power ITC237-PU1B-IR
Manuals
Installation
This section covers recommendations for physical installation of the device - including pole distance, height, and camera angle.
The camera can be installed in the center or side of lanes, with different recommended distances for mounting.
Mounting height and the best distance to capture:
| Installation Method | Camera Height | Lane Width | Snapshot Distance (min, max) | Best distance to capture |
|---|---|---|---|---|
| ITC237-PW6M | 3m | 3.5m | 7-14m | 9-12m |
| 4m | 3.5m-7m | 8-16m | 14-16m | |
| 5m | 3.5m-7m | 9-18m | 14-18m | |
| 6m | 3.5-7m | 10-30m | 25m |
Center

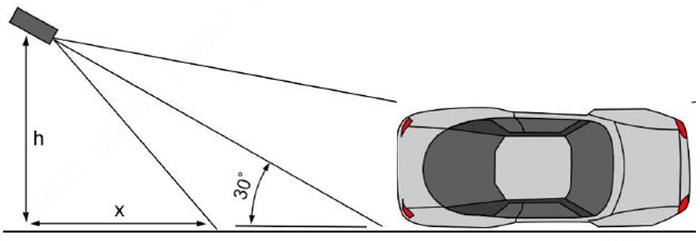

If the camera is installed in the center of the lane, the relationship between the installation height h and the capture distance x is X≥1.7*H.
For example, in the case of 6m height in the standard scheme, the minimum capture distance is 10.2m.

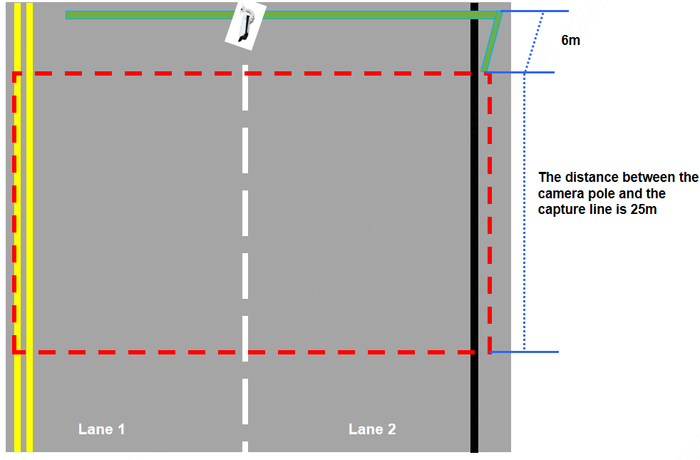

- The camera is installed in the center of the scene
- The pole is 6 meters high
- The figure below shows a 2 lane installation
Side

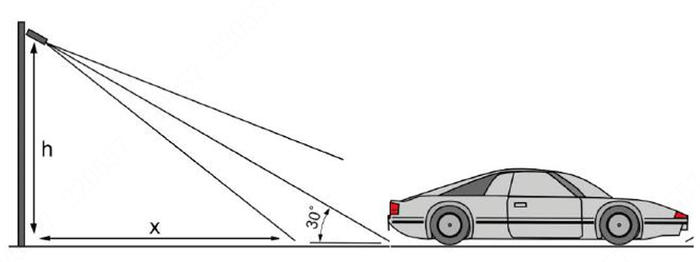

If the camera is installed in the side of the lane, the relationship between the installation height h and the capture distance x is X≥1.7*H.

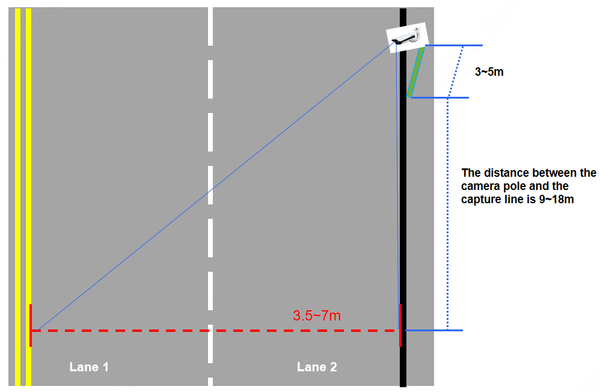

- The camera is installed on the right side of the scene
- The pole is 6 meters high
- The figure below shows a 2 lane installation
Limitation
- ITC devices do not have motion detection
- ITC do not support substream
Tips & Suggestions
- 120x50 pixels needs from example photo
- 5 degree angle or less
- Green Line =
- Red Box =
- Yellow Box =
- Gain = License Plate Reflection
NVR Compatibility
DHI-ITC237-PW6M-IRLZF1050 and DHI-ITC215-PW6M-IRLZF-B integrate with all Dahua NVR models except the following:
- N41B1P, N41B2P
- N41C1P, N41C2P
- N42B1P, N42B2P, N42B3P
Videos from the Lab
| Characters | State | Example Snapshot | Example LP Snapshot | Pixel Density | Possible Issues |
|---|---|---|---|---|---|
| 2PDP714 | California |
|
|
208x96 | None |
| 3HLM253 | California |
|
|
208x80 | None |
| 8SJB | Missouri |
|
|
160x96 | *Special Character in License Plate |
| 147F | Illinois | N/A License Plate Not Recognized by Camera | N/A License Plate Not Recognized by Camera | N/A | 160x96
|
License Plate Recognition
| Model | Description | Focal Length | Pixel |
|---|---|---|---|
| DHI-ITC237-PW6M-LZF1050 | Long Range Access ANPR Camera |
10 mm - 50 mm | 2 MP |
| DHI-ITC237-PW6M-IRLZF1050 | |||
| DHI-ITC237-PW6M-LZF1050-B | |||
| DHI-ITC237-PW6M-IRLZF1050-B |
