Access Control Test

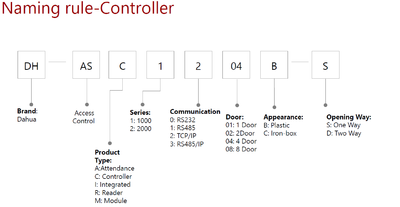

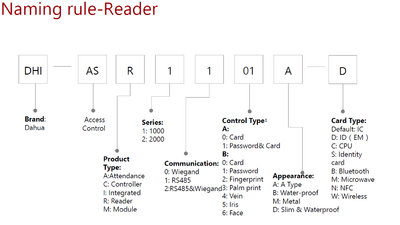

Controller naming rule.pngReader naming rule.pngIntegrated naming rule.pngModule naming rule.png

Manuals
Technology Document Name Version Models Download Link
Access Control
Access Control Access Control Extension Module DEE1010A User’s Manual 1.0.0 Click Here to Download
Access Control Wireless Alarm Controller User’s Manual 1.0.1 Click Here to Download
Access Control Access Control Integration Host User’s Manual 1.0.0 Click Here to Download
Access Control Access Controller User’s Manual 1.0.1 Click Here to Download
Access Control BSR11XXA User’s Manual 1.1.0 BSR1101A and BSR1100A Click Here to Download
Access Control Card Issuer User’s Manual 1.0.1 Click Here to Download
Access Control Card Reader User’s Manual 1.0.1 Click Here to Download
Access Control Fingerprint Access Control Card Reader User’s Manual 1.0.1 Click Here to Download
Access Control Hall Switch VTNS1060A User’s Manual 1.0.0 VTNS1060A Click Here to Download
Access Control Two-Door Access Controller User’s Manual 1.0.1 Click Here to Download

Model Image Type Description Firmware
DHI-ASC1204B ASC1204B.png Four Door Access Controller
  • Support 100,000 valid cards & 300,000 records
  • Support multiple cards
  • Support card, password, fingerprint and combination
  • TCP/IP interface to PC
  • Wiegand or RS-485 interface to readers (2/4 door)
  • Door time out alarm, intrusion alarm, duress alarm and tamper alarm
  • Anti-pass back, multi-door interlock, multi-card open
  • Support 128 efficient time and holiday schedules
  • Watch dog function ensure device free from halting
  • Surface mounted installation
DHI-ASC1204C ASC1204C.png Four Door Access Controller
  • Support 100,000 valid cards & 300,000 records
  • Support multiple cards
  • Support card, password, fingerprint and combination
  • TCP/IP interface to PC
  • Wiegand or RS-485 interface to readers (4 door)
  • Door time out alarm, intrusion alarm, duress alarm and tamper alarm
  • Anti-pass back, multi-door interlock, multi-card open
  • Support 128 efficient time and holiday schedules
  • Watch dog function ensure device free from halting
  • Surface mounted installation
  • Accumulator battery extension

Model Image Type Description Frequency Interface
DHI-ASR1200D ASR1200D.png Slim Water-proof RFID Reader
  • Red and Blue LEDs
  • Watch dog function ensure device free from halting
  • Water-proof(Outdoor use)
  • Surface/Flush mounted installation
13.56MHz(Mifare)
  • RS485
  • Wiegand 34/26 protocol(Default 34)
DHI-ASA2212A ASA2212A.png Standalone Time Attendance
  • Simple access control or external bell
  • Fingerprint, card or password verification methods.
  • Support IC (Mifare 1)13.56MHZ card
  • Add user in batch
  • Camera (build in) support to capture the real time photo
  • Break-Out/Break-In management
  • USB flash upgrades firmware
  • Support to configure timetable and shift standalone
  • USB flash export attendance report
  • T9 input method
  • All users allowed querying his attendance records
  • Within SD card storage photos
13.56MHz(Mifare) N/A
DHI-ASI1212D ASI1212D.png Water-proof Fingerprint Standalone
  • Touch keyboard and LCD display
  • Support 30,000 valid cards & 150,000 records
  • Support multiple cards(default IC card)
  • Support card, password, fingerprint and combination
  • TCP/IP to PC, support WAN communication
  • Support P2P add device
  • Wiegand or RS-485 interface to reader
  • Door time out alarm, intrusion alarm, duress alarm and tamper alarm
  • Anti-passback, multi-card open
  • Software attendance
  • Support 128 efficient time and holiday schedules
13.56MHz(Mifare)
  • RS485
  • Wiegand 34/26 protocol(Default 34)
DHI-ASR1201D ASR1201D.png Slim Water-proof RFID Reader
  • RS485, Wiegand34/26 protocol (Default 34)
  • 13.56MHz (Mifare)
  • Red and Blue LEDs
  • Watch dog function ensure device free from halting
  • Water-proof (Outdoor use)
  • Surface/Flush mounted installation
13.56MHz(Mifare)
  • RS485
  • Wiegand 34/26 protocol(Default 34)
DHI-ASR1100B ASR1100B.png RFID Reader(Wiegand)
  • Wiegand26/34 bits RS-485 protocol
  • 13.56MHz (Mifare)
  • Water-proof design
  • Red and Green indicator LEDs
  • Watch dog function ensure device free from halting
  • Surface mounted installation
13.56MHz(Mifare)
  • RS485
  • Wiegand 34/26 protocol(Default 34)
DHI-ASR1101A ASR1001A.png RFID Reader
  • Wiegand26/34 bitsprotocol
  • 13.56MHz (Mifare)
  • Red and Green LEDs
  • Sensitive touch keypad with blue backlight
  • Watch dog function ensure device free from halting
  • Beep Buzzer and LED indicator
  • Surface mounted installation
13.56MHz(Mifare)
  • RS485
  • Wiegand 34/26 protocol(Default 34)
DHI-ASR1102A(V2) ASR1102A(V2).png Fingerprint reader
  • RS-485 protocol
  • Default IC (Mifare) card
  • Support card, fingerprint
  • Up to 3000 fingerprints capacity
  • Blue backlight
  • Watch dog function ensure device free from halting
  • Beep and indicator
  • Surface mounted installation
13.56MHz(Mifare) RS-485 protocol
DHI-ASR1101M ASR1101M.png RFID Reader All metal buttons
  • Wiegand26/34 bits RS-485 protocol
  • 13.56MHz (Mifare)
  • 125KHz (EM-ID)
  • All-metal buttons with blue backlight
  • Red and Green indicator LEDs
  • Watch dog function ensure device free from halting
  • Surface mounted installation
13.56MHz(Mifare)
  • RS485
  • Wiegand 34/26 protocol(Default 34)

Accessories
DHI-ASM100 ASM100.png Card Enrollment Reader
  • Default IC (Mifare) card
  • No driver installation, plug and play
  • USB power supply and communication
  • Beep and indicator
Philips IC MF11CS50 MF11CS50.png IC Card
  • Mifare
  • 13.56MHz
DH-PFM321D-US Power Supply
  • 100VAC~240VAC-12V1A-VI-DH-PFM321D-US-US Standard-Φ5.5×Φ2.1×12
DH-PFM320D-US Power Supply
  • 100VAC~240VAC-12V2A-VI-DH-PFM321D-US-US Standard-Φ5.5×Φ2.1×12
ASM102(V2) ASM102(V2).png Fingerprint Enrollment Reader
  • No driver installation, plug and play
  • USB power supply and communication
  • Dry or wet finger can be recognition
IC Key Card
  • 13.56MHz
IC-SM IC Key Fob.jpg IC Key Fob
  • 13.56MHz
