Video Intercom

Product Overview

Icon Name Generation Technology SIP 2.0 Example Device 1 Example Device 2 Identifying Characteristic PC Software Mobile App
Gen1-IP Gen 1 IP Non-SIP VTH1550CH VTO2111D-WP No "-2" or "-S" SmartPSS gDMSS or iDMSS
Gen1-2Wire Gen 1 2-Wire Non-SIP VTO2000A-2 VTH1550CHW-2 "-2" at end of model name SmartPSS gDMSS or iDMSS
Gen2-SIP2.0-IP Gen 2 IP SIP 2.0 VTH1550CH-S DHI-VTO2000A-S "-S" at end of model name DSS or DSS Express S DSS Mobile for VDP
Gen2-SIP2.0-2Wire Gen 2 2-Wire SIP 2.0 DHI-VTH1550CHW-2-S DHI-VTO2000A-2-S "-2-S" at end of model name DSS or DSS Express S DSS Mobile for VDP

NOTE: You cannot mix and match Video Intercom devices from different Technologies, Generations, or Technology.

NOTE2: Generation 1 devices cannot be upgraded to Generation 2 firmware. Generation 2 devices cannot be downgraded to support Generation 1 devices.

VDP Config Tool

Click Here To Download VDP Config Tool

SmartPSS V2.01 with Video Intercom

Click Here To SmartPSS with Video Intercom

Information

VTH Series UsersManual v102
VTO Series UsersManual V102

Device Configuration Page: In homepage, long press Settings for 6 seconds. Device pops up Password Verification box.

Default password for these devices is one of the following:

  • 002236
  • 888888
  • 123456
  • User password initially is 123456.
  • Unlock password initially is null.
  • Arm password initially is 123456.
  • Disarm password initially is 123456.
  • Anti-hijack password initially is 654321.

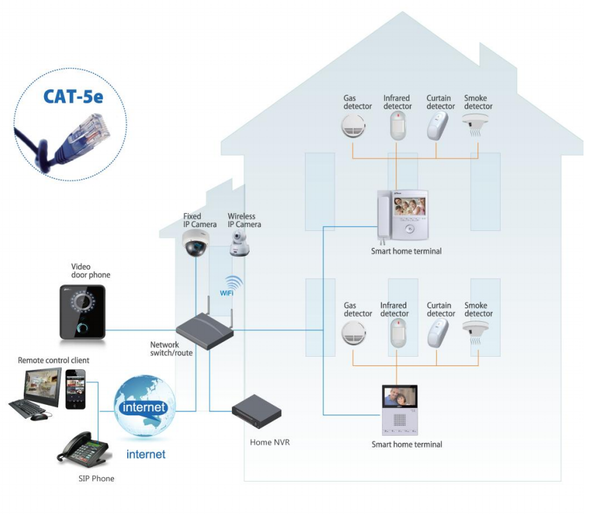

VideoIntercomVillaDiagram.png Video communication between indoor monitor and outdoor station:

  • Indoor monitor monitors the outdoor station, and supports remote door releasing
  • Hand free communication, 7-inch TFT LCD touch screen for your free choice
  • Store the visitor’s picture and audio message automatically
  • Integrate IP camera and SIP Phone
  • Compatible to up to 8 security sensors( burglar, fire, gas leakage, etc)
  • Emergency button to call the service center
  • Remote control by PC clients or cell phone terminal
  • Support the free communication with other sub-indoor monitors in the same house
  • Villa VTO only supports to add 1 Master VTH. Any new Master VTH will replace current VTH.(Master VTH supports up to 4 sub VTHs)

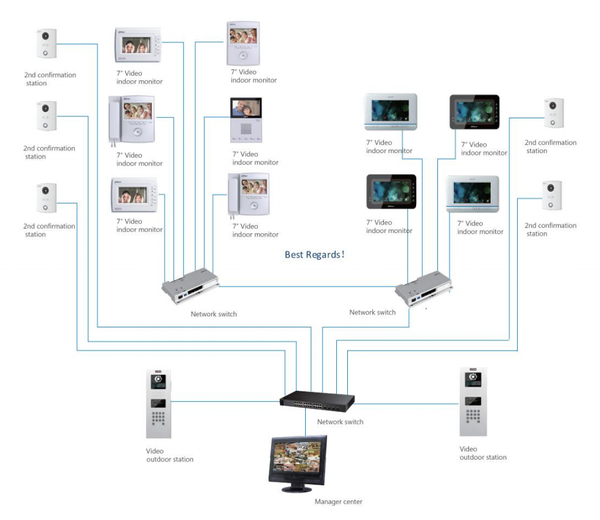

VideoIntercomApartmentDiagram.png Adopt TCP/IP network standard protocol

  • Support no number limit for indoor monitor
  • Integrate IP camera and SIP Phone
  • Support the free communication with other residents in the same community
  • Easy to realize the video communication, remote unlock, message service, and remote control functions, etc

Instructions

Products-SIP 2.0 Firmware

WARNING! Do Not Flash This Firmware Unless You Are 100% Sure All of Your Video Intercom Devices are compatible with SIP 2.0 before updating your devices

This firmware will not work with the following devices:

  • VTH1660CH
  • DSS4004
  • DSS7016
  • SmartPSS

Models Image Station Type Generation Description Specification Manual Main Firmware MCU Firmware Voice Firmware
VTO1210C-X-S VTO1210C-X.png Apartment Outdoor Station SIP
  • HD CMOS camera
  • Stainless steel panel, IP54, IK07
  • Night vision & Voice indication
  • Local card opening
  • Video & Audio messaging
  • Surface & Flush mounted

Build Date: 07-08-2019

Build Date: 03-05-2019

Build Date: 04-20-2019
VTO2000A-S VTO2000A.png Villa Outdoor Station SIP
  • HD CMOS camera
  • Stainless steel panel, IP54, IK07
  • Night vision & Voice indication
  • Video & Audio messaging
  • Remote intercom with mobile APP
  • Surface mounted & Flush mounted

Build Date: 07-08-2019

Build Date: 11-23-2018

Build Date: 04-20-2019
VTO2000A-2-S VTO2000A.png 2wire Villa Outdoor Station SIP
  • HD CMOS camera
  • Stainless steel panel, IP54, IK07
  • Night vision & Voice indication
  • Video & Audio messaging
  • Remote intercom with mobile APP (VTNC3000A needed)
  • Surface mounted & Flush mounted

Build Date: 07-08-2019

Build Date: 11-23-2018

Build Date: 04-23-2019
VTO2111D-WP-S VTO2111D-WP.png Wireless Outdoor Station SIP
  • HD CMOS camera
  • Large field of view angle
  • Night vision
  • Voice indication
  • Remote intercom with mobile APP
  • Surface mounted

Build Date: 07-08-2019

Build Date: 04-23-2019

Build Date: 02-25-2019

Models Image Station Type Description Specification Manual Firmware Firmware (Part 2)
VTH1550CH-S DHI-VTH1550CH.png IP Color Indoor Monitor
  • HD CMOS camera
  • Stainless steel panel, IP54, IK07
  • Night vision & Voice indication
  • Local card openning
  • Video & Audio messaging
  • Surface & Flush mounted

Build Date: 05-09-2023
VTH1550CHW-2-S DHI-VTH1550CH.png 2wire IP Indoor Monitor 7 inch
  • 7" TFT Capacitive touch screen
  • IPC surveillance (VTNC3000A needed)
  • Alarm integration
  • Micro SD card optional, max 32GB
  • Record & Snapshot (SD card needed)

Build Date: 03-21-2019
VTH5221D-S DHI-VTH5221D.png Wireless indoor monitor 7-inch- Black
  • 7-inch capacitive touch screen, resolution 1024×600
  • IPC surveillance
  • Alarm integration
  • Group call
  • 2-Door control
  • Micro SD slot, max 32GB
  • Record and snapshot (SD card needed)
  • Wi-Fi & POE
  • Surface mounted

Build Date: 08-04-2023

Build Date: 08-04-2023
DHI-VTH5221DW-S DHI-VTH5221DW.png Wireless indoor monitor 7-inch- Black
  • 7-inch Capacitive Touch Screen, 1024 x 600 Resolution
  • IPC Surveillance
  • Alarm Integration and Group Call
  • Two-door Control
  • Micro SD Card Slot, maximum 32 GB
  • Add Devices in SmartPSS via P2P Connection
  • Record and Snapshot Functions (requires SD card)
  • WiFi-enabled and PoE Power Supply
  • Surface-mounted

Build Date: 08-04-2023

Build Date: 08-04-2023

Dahua Housing Dahua Model Outdoor Station Indoor Station Short Description Specifications VTO Firmware VTH Firmware
Kits/DHI-KTP01(S) DHI-KTP01(S) DHI-VTO2202F-P DHI-VTH2421FW-P

DHI-VTO2202F-P - IP Outdoor Station
DHI-VTH2421FW-P - Indoor Monitor
DH-PFS3005-4ET-60 - PoE Switch
VTM115 - Surface-mount Box for DHI-VTO2202F-P
One-Key Config


Build Date: 05-23-2022

Build Date: 08-04-2023

Products-VTO Firmware

WARNING! Do Not Flash This Firmware Unless You Are 100% Sure All of Your Video Intercom Devices are Gen 1 before updating your devices

Models Image Station Type Description Manual Firmware
VTO1210C-X VTO1210C-X.png Apartment Outdoor Station
  • HD CMOS camera
  • Stainless steel panel, IP54, IK07
  • Night vision & Voice indication
  • Local card opening
  • Video & Audio messaging
  • Surface & Flush mounted

Build Date: 06-14-2018
VTO1210B-X VTO1210B-X.png Apartment Outdoor Station
  • HD CMOS camera
  • Tempered glass panel, IP65
  • Night vision & Voice indication
  • Local card opening
  • Video & Audio messaging
  • Flush mounted

Build Date: 06-14-2018
VTO1220BW VTO1220BW.png Apartment Outdoor Station
  • HD CMOS camera
  • Tempered glass panel, IP65
  • Night vision & Voice indication
  • Local card openning
  • Video & Audio messaging
  • Flush mounted

Build Date: 06-14-2018
VTO2000A VTO2000A.png Villa Outdoor Station
  • HD CMOS camera
  • Stainless steel panel, IP54, IK07
  • Night vision & Voice indication
  • Video & Audio messaging
  • Remote intercom with mobile APP
  • Surface mounted & Flush mounted

Build Date: 06-13-2018
VTO2000A-2 VTO2000A.png 2wire Villa Outdoor Station
  • HD CMOS camera
  • Stainless steel panel, IP54, IK07
  • Night vision & Voice indication
  • Video & Audio messaging
  • Remote intercom with mobile APP (VTNC3000A needed)
  • Surface mounted & Flush mounted

Build Date: 06-13-2018
VTO2111D-WP VTO2111D-WP.png Wireless Outdoor Station
  • HD CMOS camera
  • Large field of view angle
  • Night vision
  • Voice indication
  • Remote intercom with mobile APP
  • Surface mounted

Build Date: 07-31-2018

Models Image Station Type Description Manual Firmware
VTH1550CH DHI-VTH1550CH.png Apartment Outdoor Station
  • HD CMOS camera
  • Stainless steel panel, IP54, IK07
  • Night vision & Voice indication
  • Local card openning
  • Video & Audio messaging
  • Surface & Flush mounted

Build Date: 06-22-2018
VTH1660CH VTH1660CH.jpg IP Indoor Monitor 10 inch
  • Displayer: Color 10.2-inch TFT LCD,
  • Capacitive touch screen, metal frame
  • Support 8 wire alarm input extension or home appliance
  • Call among households
  • 1 channel 10/100Mbps self-adaptive Ethernet
  • Support outdoor station and IPC monitor
  • Support leave audio and video message
  • Support supplied power by network cable
  • SD card inside
  • Flush mounted

Build Date: 06-22-2018
VTH1550CHW-2 DHI-VTH1550CH.png 2wire IP Indoor Monitor 7 inch
  • 7" TFT Capacitive touch screen
  • IPC surveillance (VTNC3000A needed)
  • Alarm integration
  • Micro SD card optional, max 32GB
  • Record & Snapshot (SD card needed)

Build Date: 06-22-2018
VTH5221D DHI-VTH5221D.png Wireless indoor monitor 7-inch- Black
  • 7-inch capacitive touch screen, resolution 1024×600
  • IPC surveillance
  • Alarm integration
  • Group call
  • 2-Door control
  • Micro SD slot, max 32GB
  • Record and snapshot (SD card needed)
  • Wi-Fi & POE
  • Surface mounted

Build Date: 07-31-2018
DHI-VTH5221DW DHI-VTH5221DW.png Wireless indoor monitor 7-inch- Black
  • 7-inch Capacitive Touch Screen, 1024 x 600 Resolution
  • IPC Surveillance
  • Alarm Integration and Group Call
  • Two-door Control
  • Micro SD Card Slot, maximum 32 GB
  • Add Devices in SmartPSS via P2P Connection
  • Record and Snapshot Functions (requires SD card)
  • WiFi-enabled and PoE Power Supply
  • Surface-mounted

Build Date: 07-31-2018

Accessories
VTNS1060A VTNS1060A.png Network Power Supply for IP System
  • Decent appearance
  • Dahua protocol network power supply switch
  • Connect max 6 indoor monitors with the Cat 5e cable, transfer the signal and power together
VTNC3000A VTNC3000A.png 2-Wire Network Controller
  • 4 groups of 2-wire port, provide power and signal to other 2-wire devices
  • RJ45 port, connected LAN
  • Surface mounted & DIN-Rail Mounted
PFM321D-US DH-PFM321D-US.jpg Power Supply
  • 100VAC~240VAC-12V1A-VI-DH-PFM321D-US-US Standard-Φ5.5×Φ2.1×12
PFM320D-US DH-PFM321D-US.jpg Power Supply
  • 100VAC~240VAC-12V2A-VI-DH-PFM321D-US-US Standard-Φ5.5×Φ2.1×12
VTOB108 VTOB108.png Surface Mounted Box for VTO2000A
  • Material: Metal
  • Size: 145mm*134mm*88mm
  • Weight: 1 Kg
  • Surface mounted box
VTOB107 linkVideo_Intercom/Products/VTOB107 Flush Mounted Box for VTO2000A
  • Material: Metal
  • Size: 125mm*135mm*56mm
  • Weight: 0.8 Kg
  • Flush mounted box
VTOB110 VTOB110.png Surface Mounted Box for VTO1210C-X
  • Material: Metal
  • Size: 145mm*134mm*70mm
  • Weight: 1 Kg
  • Surface mounted box
VTOB103 VTOB103.png Flush Mounted Box for VTO1210C-X
  • Material: Plastic
  • Size: 126mm*389mm*71mm
  • Weight: 0.5 Kg
  • Flush mounted box
